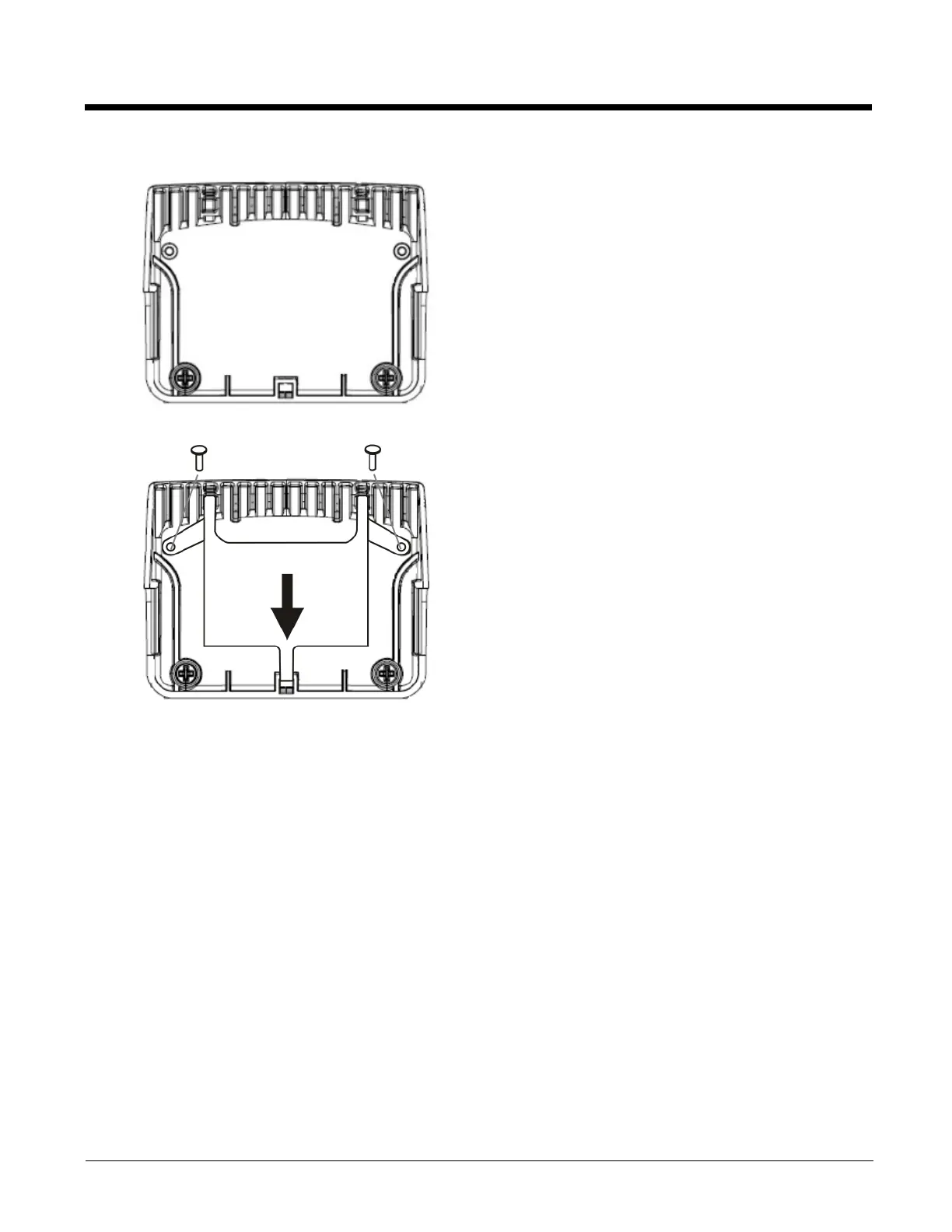

1. Lay the flat side of the Retainer Insert against the underside of the Retainer cap, show below.
2. Slide the Retainer Insert back tab into the slot at the back of the Retainer.
3. Fasten the Retainer Insert to the Retainer cap using screws and the pre-drilled holes in the angled tabs (one on
each side).
4. Fasten the Retainer Insert with two screws (the screws do not require a torquing tool).
Periodically check the connection of the adapter cup and re-torque if necessary. Periodically check the Retainer Insert
connection and re-tighten if necessary.
Removing the Adapter Assembly
1. Remove the adapter cup by unscrewing the single captive screw at the front of the adapter cup.
2. Remove the Retainer Cap Insert by unscrewing the two screws holding it to the Retainer.
3. Slide the tab out of the slot in the back of the Retainer assembly.
Place the screws, adapter cups and the Retainer Cap Insert in a protected, safe place until needed.
If the adapter cup or retainer insert are cracked or broken, they must be replaced before a powered vehicle cradle, with an
adapter cup and Retainer Cap Insert, is placed into service.
