14.9.1 To View Active Alarms
Active alarms can be viewed in three ways:
From the System Status (Home) screen, select the flashing red bell Alarm icon.
From the System Status (Home) screen navigation bar, select the Active Events icon, then the Filter icon and then
select Alarm from the popup menu.
From the System Status screen navigation bar, select the Inputs icon, then the Filter icon and select Alarm from the
popup menu.
The screen will display a list of all the input channels that have active alarms, starting with the most recent event.
Unacknowledged alarms will flash, acknowledged ones will not flash.
Note: The display shows the channel ID, location tag and the time of the alarm. All alarm levels will be shown if more than
one alarm level has been triggered on the same channel.

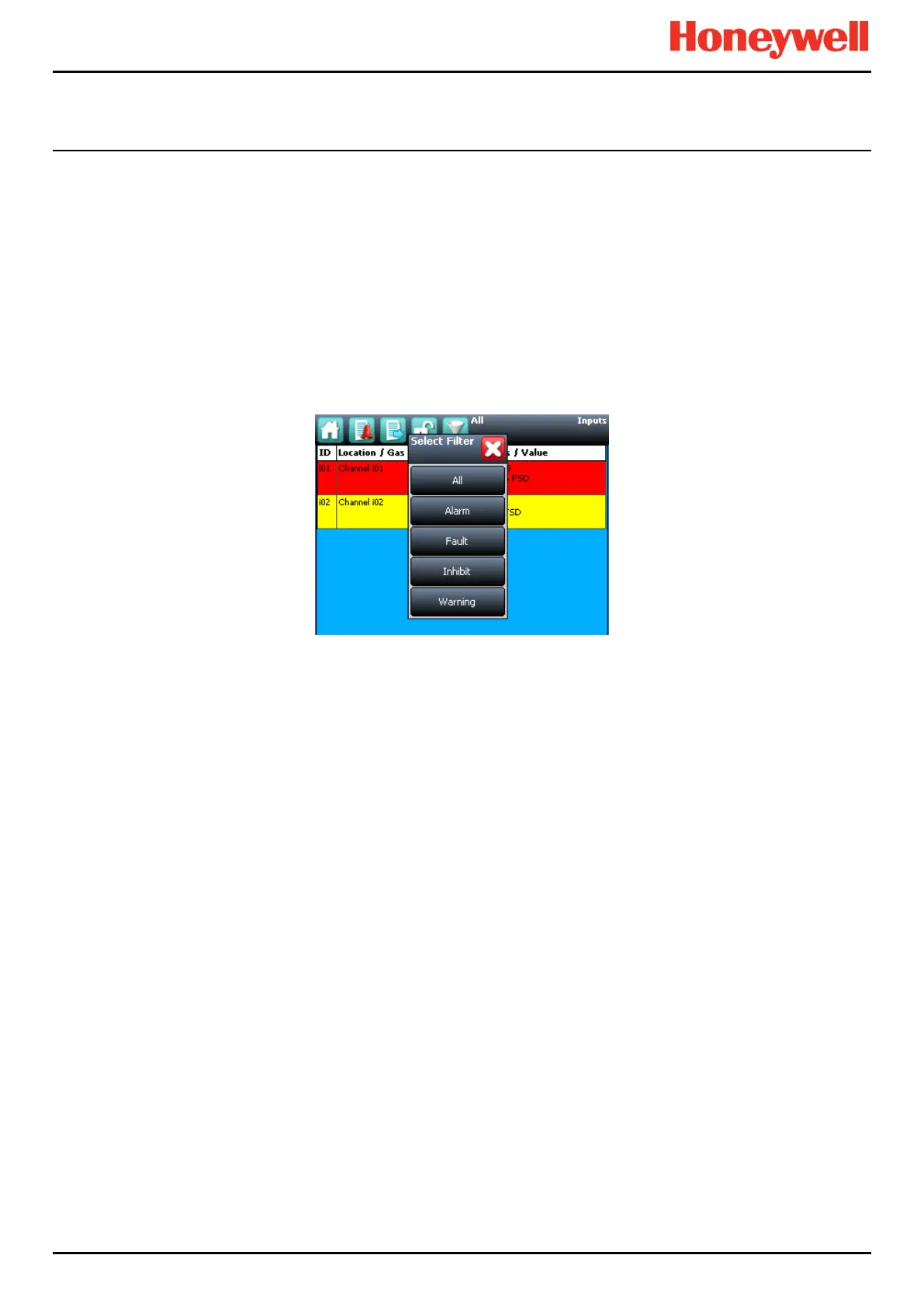

Figure 93. Active Events Screen with Filter Options
14.9.2 To Acknowledge an Active Alarm
An active alarm can be acknowledged from the controller in three ways:
Select the Accept button on the front panel of the TPPR Controller for >0.5 s. This will acknowledge all active
events, including faults and warnings.
From the Inputs screen, select the channel and select Acknowledge from the popup menu. This will acknowledge all
active events for that channel only.
From the Active Events screen, select the alarm and select Acknowledge from the popup menu. This will
acknowledge only the selected alarm.
Acknowledging an alarm silences the buzzer and the alarm icon stops flashing, but latched alarms are not automatically
reset.
Note: The Alarm Update function modifies the operation of Output channels when events are acknowledged. Refer to Ch.
9.6.8 Alarm Update.
