Honeywell touchpoint Pro Technical Handbook

MODBUS INSTALLATION
Part. No. 2400M2501_6 Touchpoint Pro
43 Technical Handbook

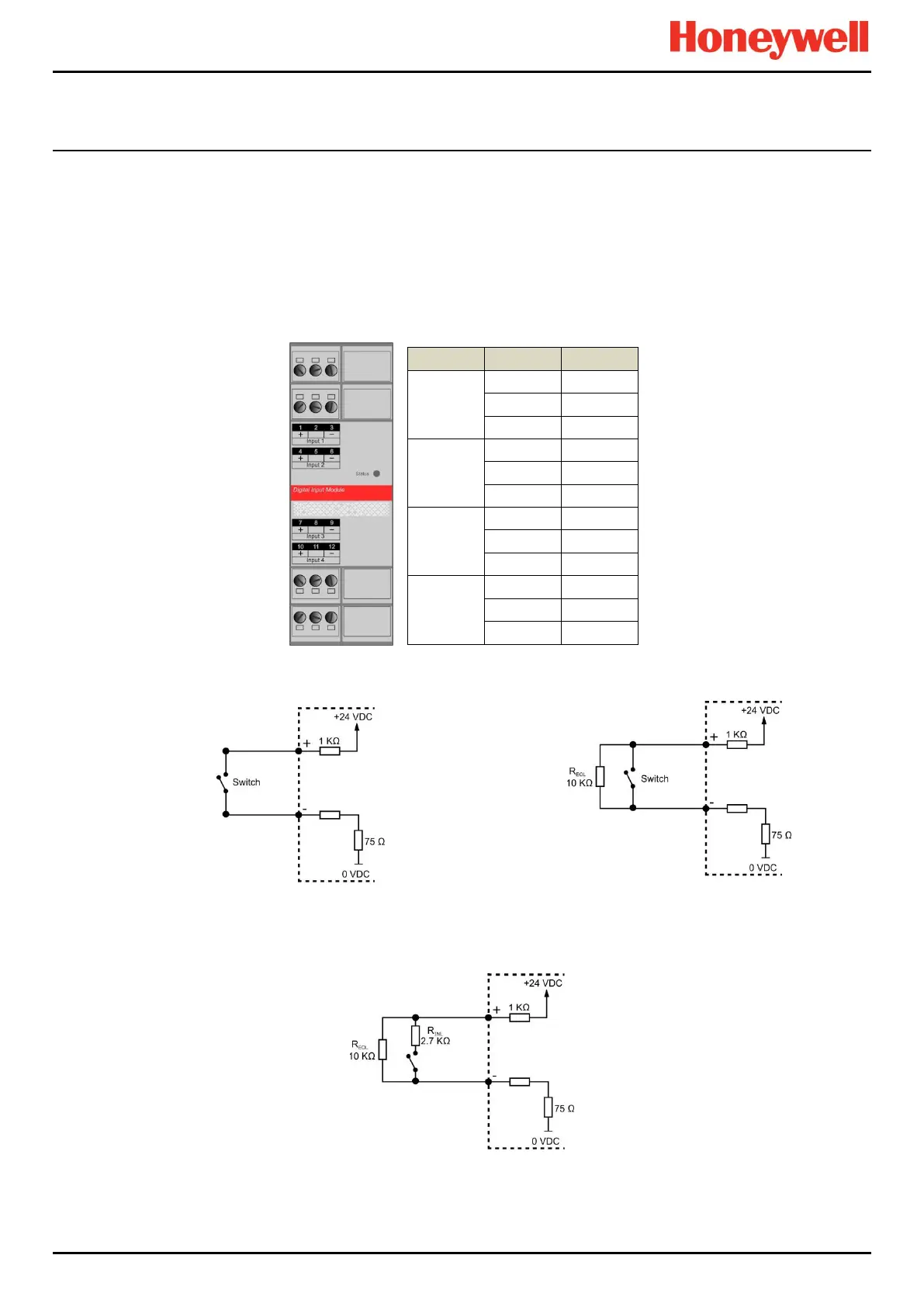

5.2.16 Connecting to a Digital Input Module
The Digital Input Module (DIM) has two modes of operation. A DIM channel may be configured to generate an alarm, fault or
warning signal when activated.
Alternatively, a DIM channel may be configured to provide remote control of a selected group of one or more input / output
channels. The DIM may be used to remotely reset, inhibit, or acknowledge the selected channels.
When used for inhibit, repeated activation toggles the inhibit state of the selected channels.
Note: It is the user's responsibility to guard against unauthorised inputs when using remote switches, buttons or keys.
Channel
Terminal
Label
Input 1
1
+
2
3
–
Input 2
4
+
5
6
–
Input 3
7
+
8
9
–
Input 4
10
+
11
12
–
Table 11. IM Connection Table
Figure 55. Unsupervised Circuit
Figure 56. Supervised for Open Circuit
Figure 57. Supervised for Open and Short Circuit
TPPR
TPPR
TPPR
