MECHANICAL INSTALLATION
Part. No. 2400M2501_6 Touchpoint Pro
29 Technical Handbook

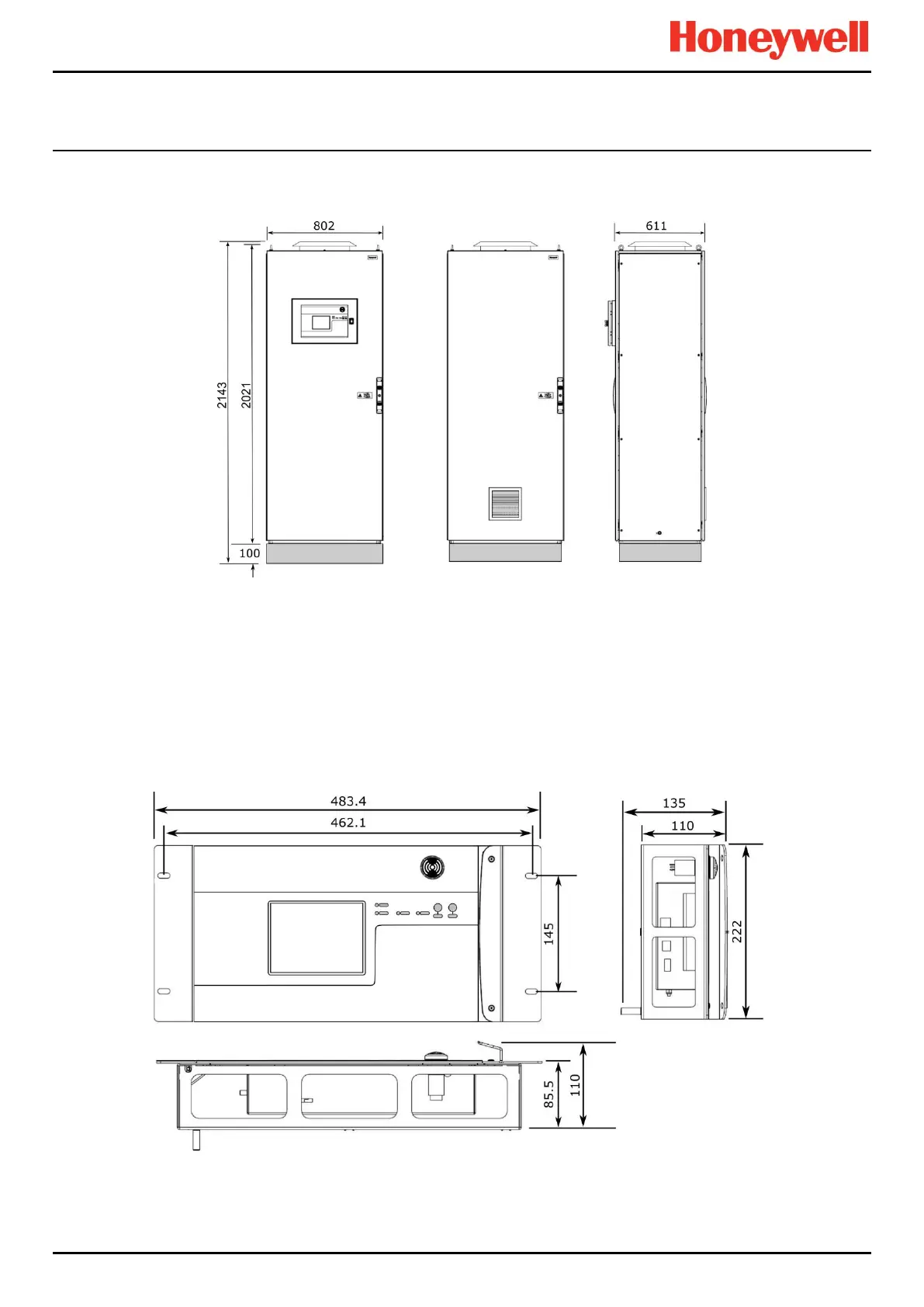

4.3.1 Floor Standing Enclosure Dimensions
Figure 36. Example of a Floor Mounted System with Forced Rear Ventilation and Vent Hood
4.4 Installing the TPPR 19". Rack Mounted Unit
This module is designed to fit into an industry standard 19" rack, with a height of 5U. The dimensions of the 19" rack
mounted unit (Controller or Remote version) are shown below (all dimensions in mm).
Note: It is the OEM and Installer's responsibility to ensure that the unit is electrically and environmentally safe and is
protected against the ingress of dust or moisture.
4.4.1 TPPR 19” Rack Mounted Unit Dimensions
Figure 37. TPPR 19" Rack Dimensions
