MECHANICAL INSTALLATION
Part. No. 2400M2501_6 Touchpoint Pro
27 Technical Handbook
4.2.2 Wall Mounted Enclosure Dimensions

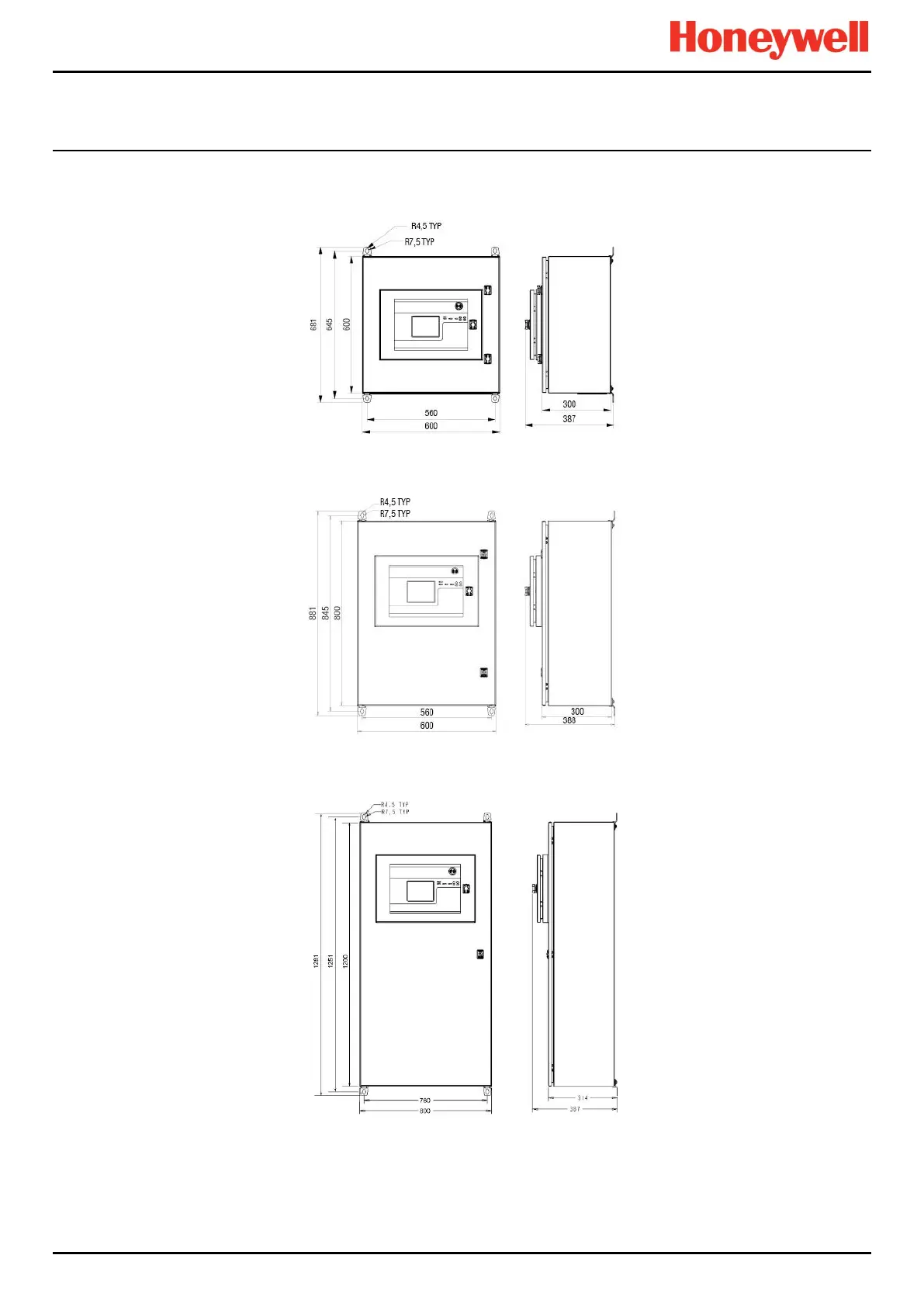

The dimensions of the various wall mounted units (Controller or Remote) are shown below (all dimensions in mm):
Figure 32. Small Wall Mounted Enclosure
Figure 33. Medium Wall Mounted Enclosure
Figure 34. Large Wall Mounted Enclosure
