Function Parameter Index Reference
8/99 RS232 Communications Reference Manual 113
5.60 STSW Function Block
Description

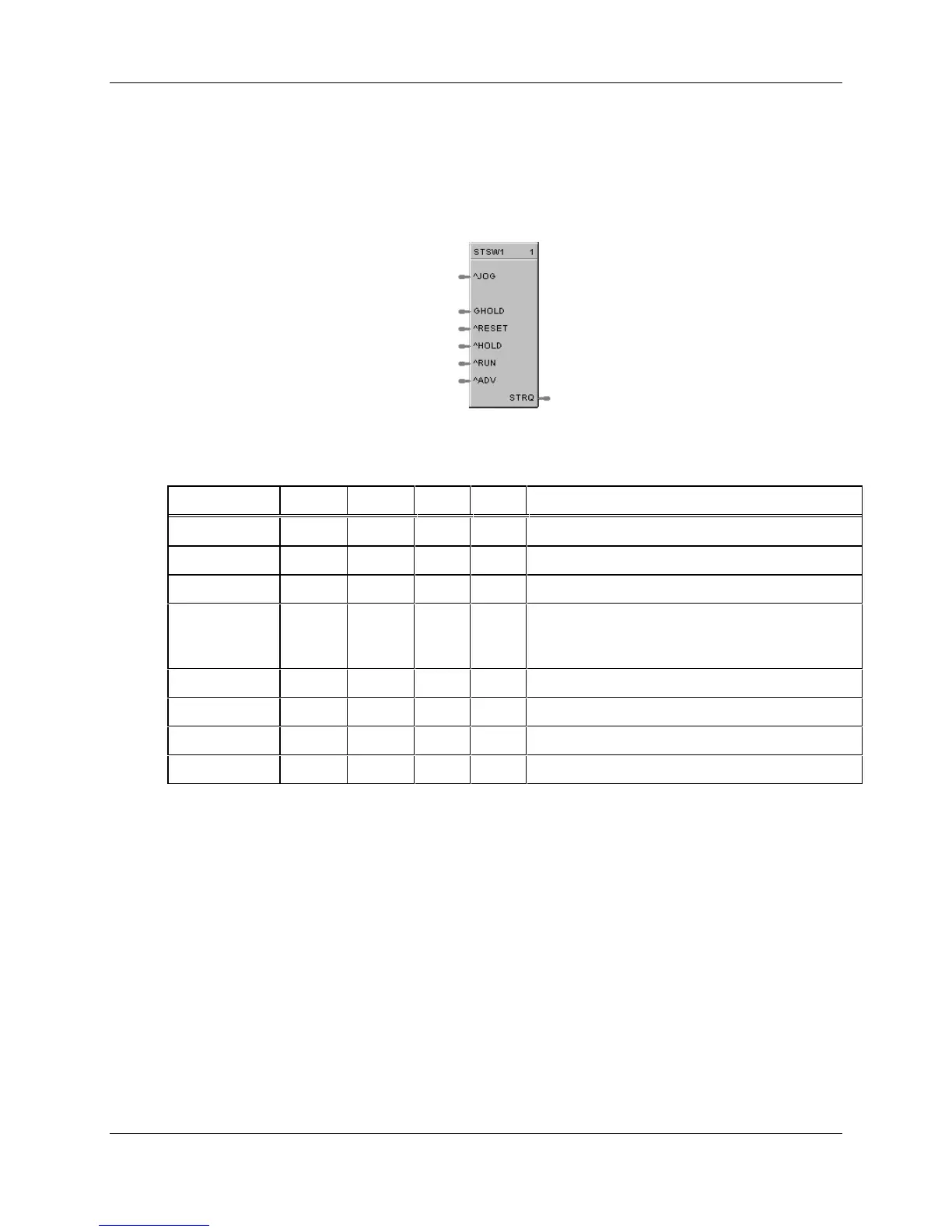

The STSW label stands for the Setpoint Scheduler State Switch. This block is part of the Setpoint
Scheduler category. It looks like this graphically on the Control Builder.
Dynamic Values:
Table 5-80 STSW Dynamic Values
Parameter Index Type Use R/W Description
status 0 REAL C R block status
STRQ 1 REAL O R Encoded state request output
JOG 2 BOOL I R OFF to ON requests jog state
GHOLD 3 BOOL I R ON = guaranteed hold state
ON to OFF and previous state was Run, then return
to RUN mode
RESET 4 BOOL I R OFF to ON requests reset state
HOLD 5 BOOL I R OFF to ON requests hold state
RUN 6 BOOL I R OFF to ON requests run state
ADV 7 BOOL I R OFF to ON requests advance state
Static Configuration Values
None
