Function Parameter Index Reference
8/99 RS232 Communications Reference Manual 79
5.37 MUL Function Block
Description

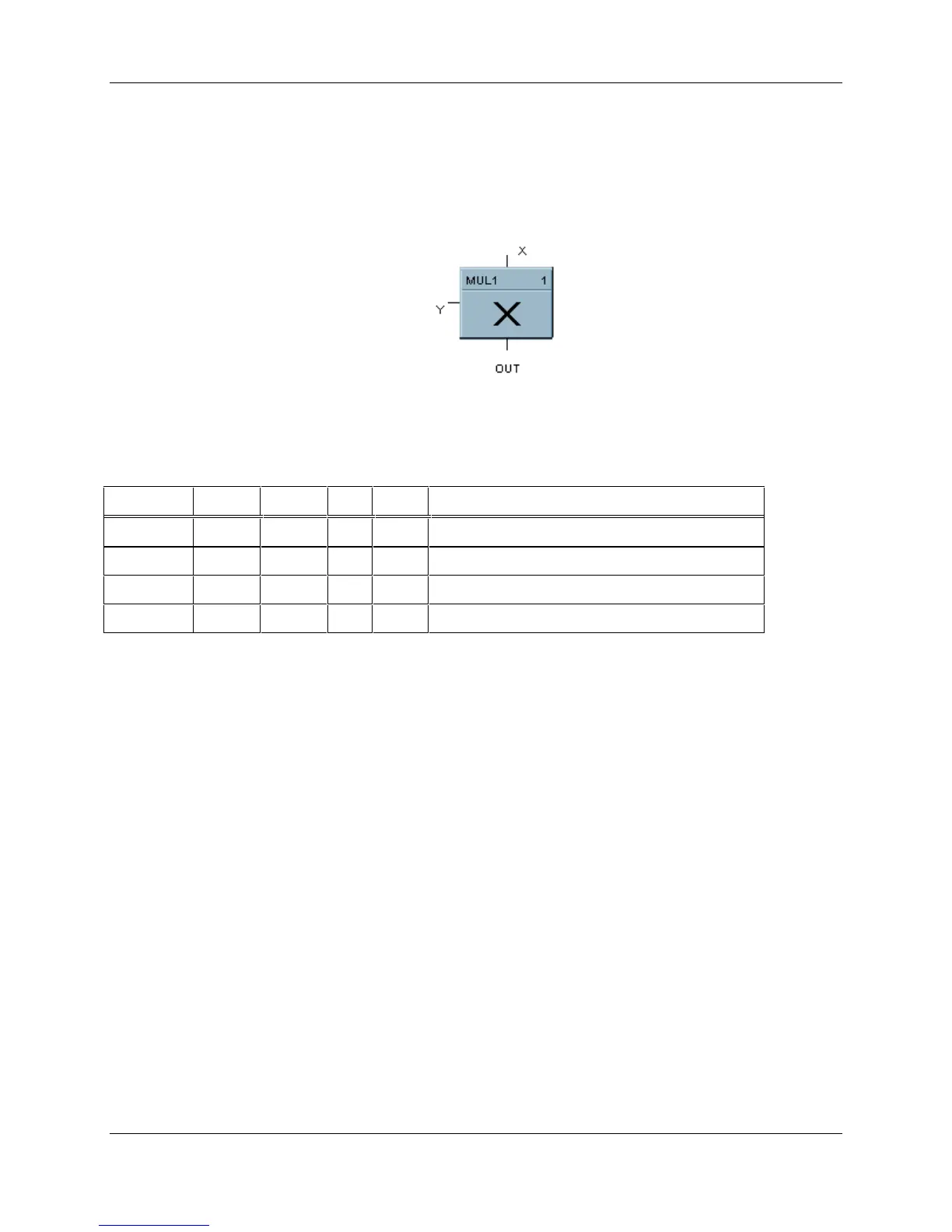

The MUL label stands for Multiplication Mathematical Operation (2 Inputs). This block is part of the
Math category. It looks like this graphically on the Control Builder.
Dynamic Parameters:
Table 5-46 MUL Dynamic Parameters
Parameter Index Type Use R/W Description
status 0 REAL C R block status (see section 5.2 for code list)
OUT 1 REAL O R output
X 2 REAL I R input 1
Y 3 REAL I R input 2
Static Configuration Parameters:
None
