Function Parameter Index Reference
8/99 RS232 Communications Reference Manual 75
5.33 MATH Function Block
Description

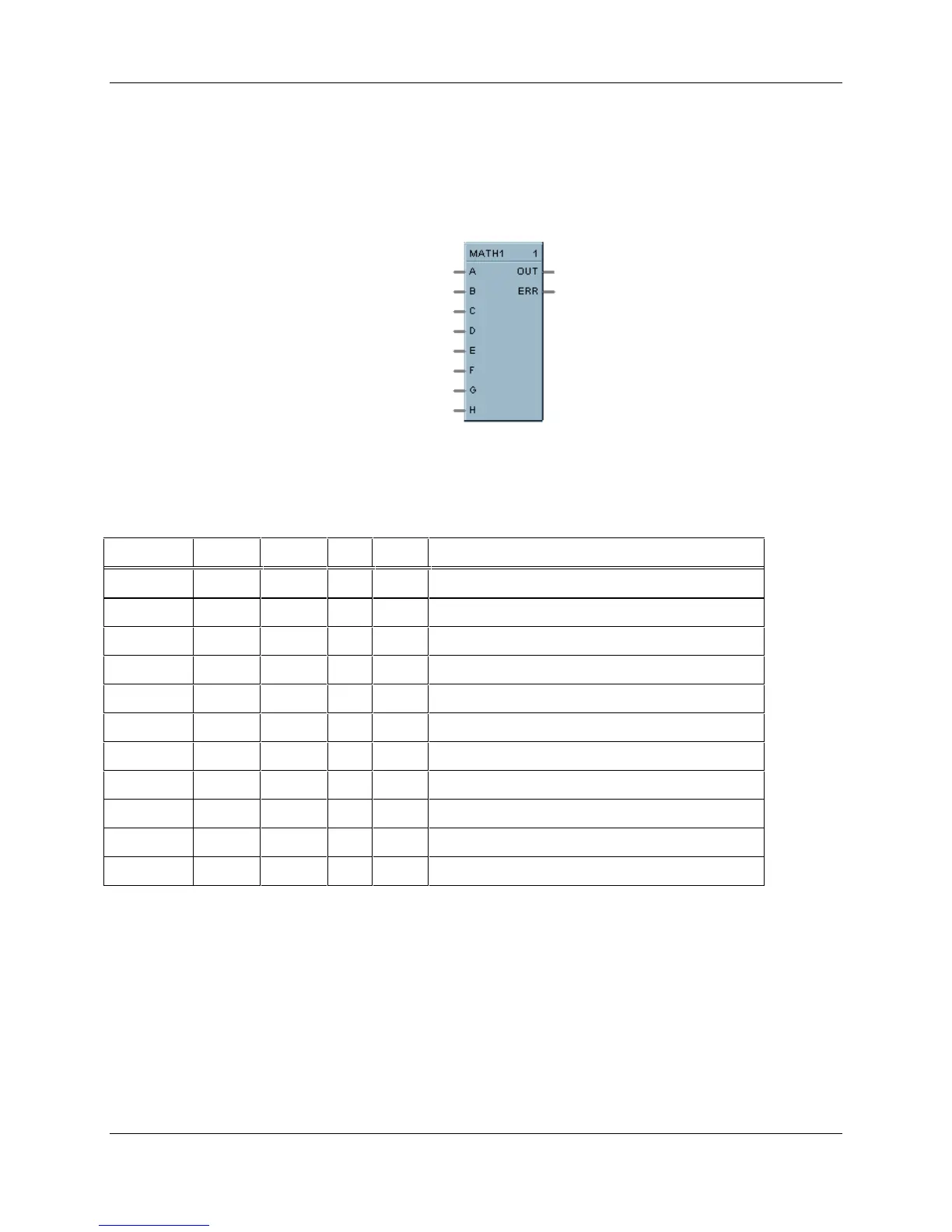

The MATH label stands for Free Form Math. This block is part of the Math category. It looks like this
graphically on the Control Builder.
Dynamic Parameters:
Table 5-41 MATH Dynamic Parameters
Parameter Index Type Use R/W Description
status 0 REAL C R block status (see section 5.2 for code list)
OUT 1 REAL O R Result
ERR 2 BOOL O R Error indication
A3REALIRInput 1
B4REALIRInput 2
C5REALIRInput 3
D6REALIRInput 4
E7REALIRInput 5
F8REALIRInput 6
G9REALIRInput 7
H 10 REAL I R Input 8
Static Configuration Parameters: None
