118

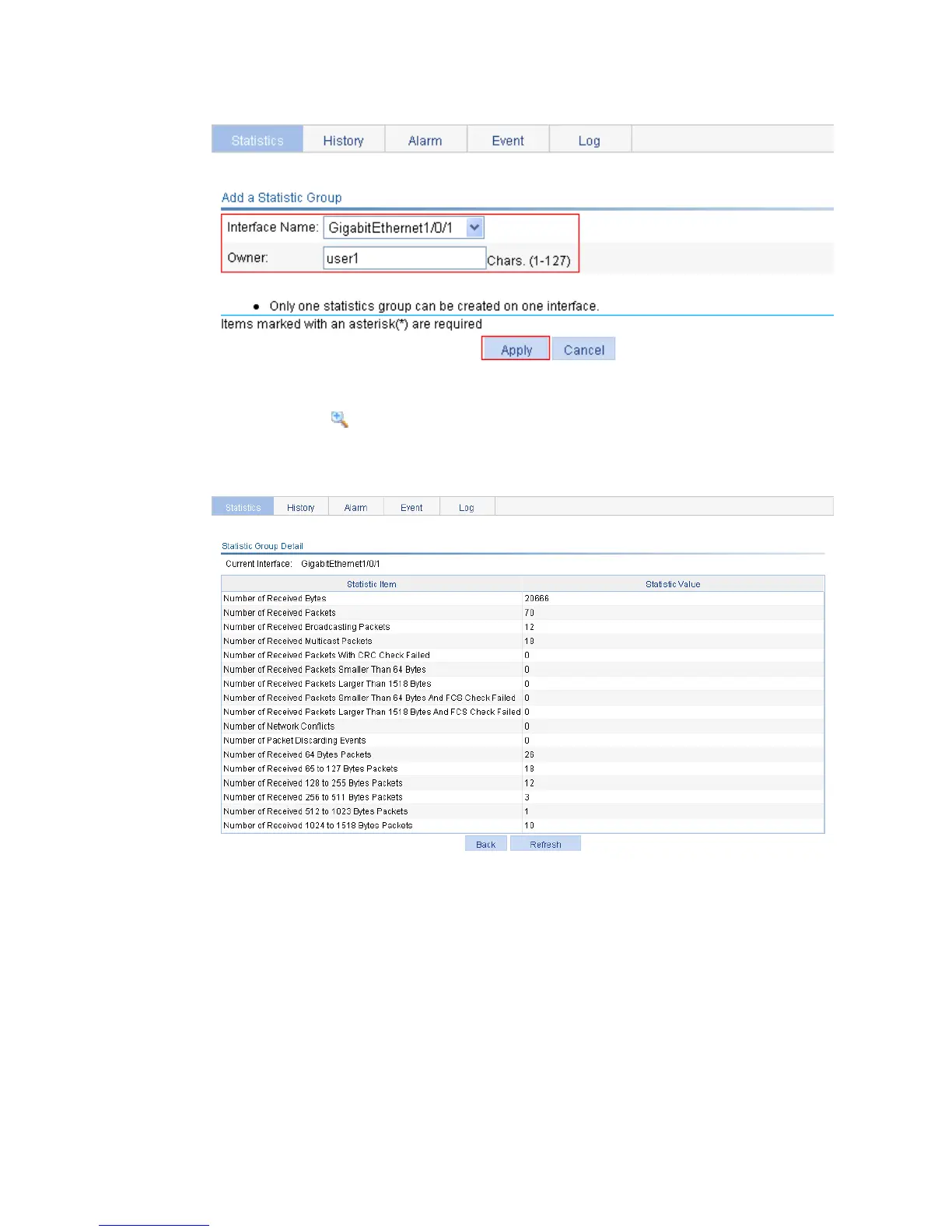

Figure 98 Adding a statistics entry
2. Display RMON statistics for interface GigabitEthernet 1/0/1:
a. Click the icon corresponding to GigabitEthernet 1/0/1.
b. View the information as shown in Figure 99.
Figure 99 Displaying RMON statistics
3. Create an event to start logging after the event is triggered:
a. Click the Event tab.
b. Click Add.
The page in Figure 100 ap
pears.
c. Type user1-rmon in the Owner field, select the box before Log, and click Apply.
d. The page displays the event entry, and you can see that the entry index of the new event is 1,
as shown in Figure 101.
