HP 1910 User Manual

120

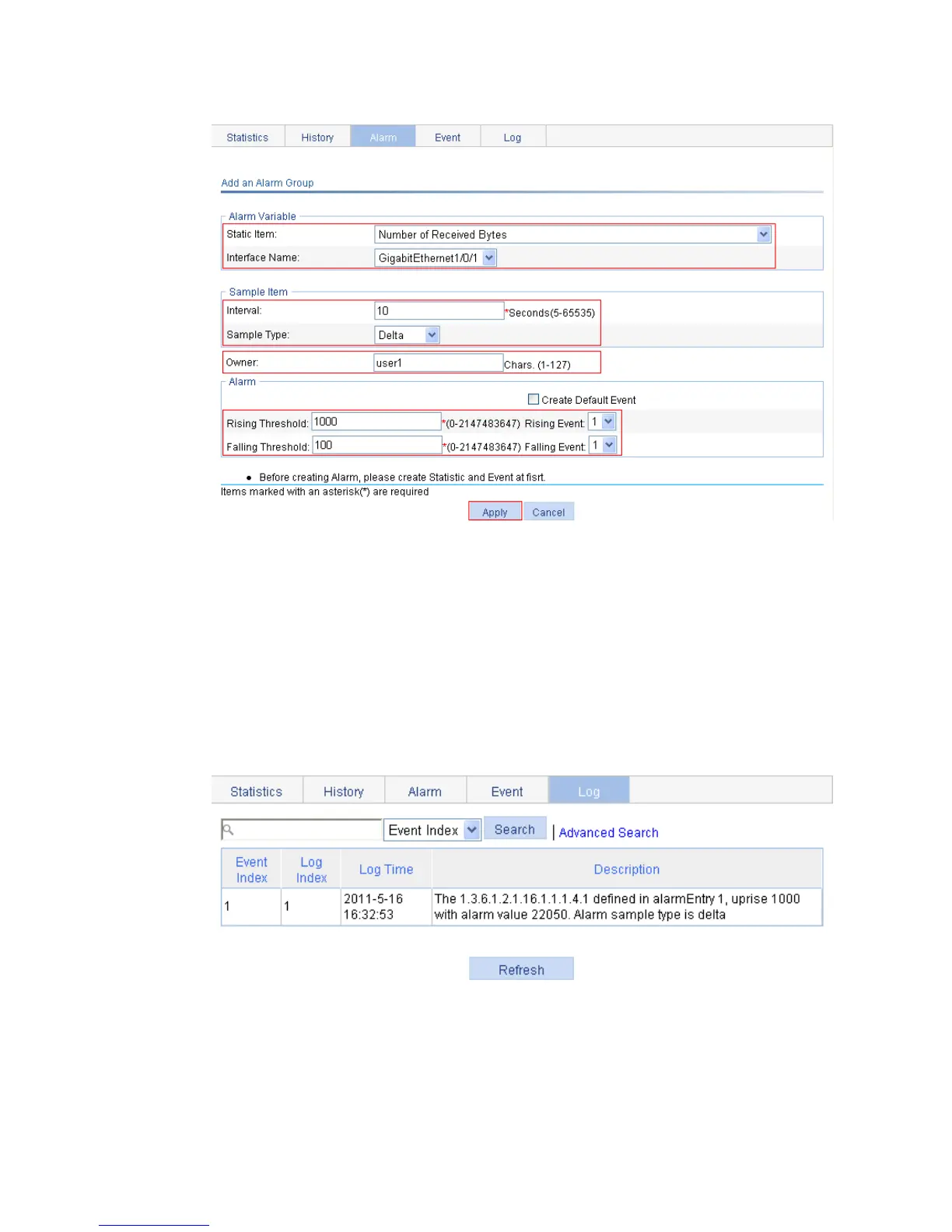

Figure 102 Configuring an alarm group
Verifying the configuration
After the above configuration, when the alarm event is triggered, you can view the log information about
event 1 on the web interface.
1. Select Device > RMON from the navigation tree.
2. Click the Log tab.
The log page appears. The log in this example indicates that event 1 generated one log, which
was triggered because the alarm value (22050) exceeded the rising threshold (1000). The
sampling type is absolute.
Figure 103 Log tab
