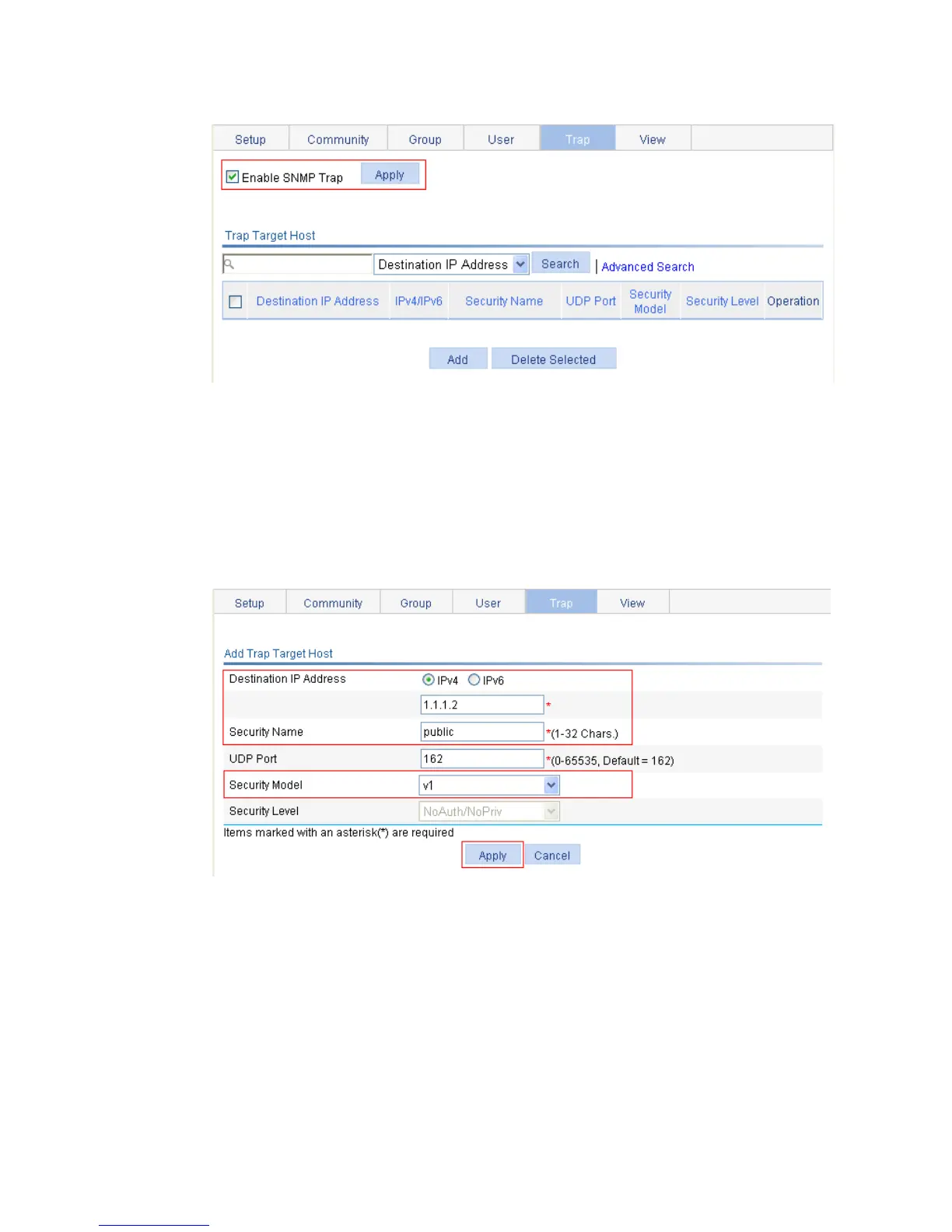

Figure 125 Enabling SNMP traps
5. Configure a target host SNMP traps:
a. Click Add on the Trap tab page.
The page for adding a target host of SNMP traps appears.
b. Type 1.1.1.2 in the following field, type public in the Security Name field, and select v1 from
the Security Model list.
c. Click Apply.
Figure 126 Adding a trap target host
Configuring the NMS
To avoid communication failures, make sure the NMS use the same SNMP settings as the agent.
To configure the NMS:
1. Configure the SNMP version for the NMS as v1 or v2c.
2. Create a read-only community and name it public.
3. Create a read and write community and name it private.
For information about how to configure the NMS, see the NMS manual.
