140

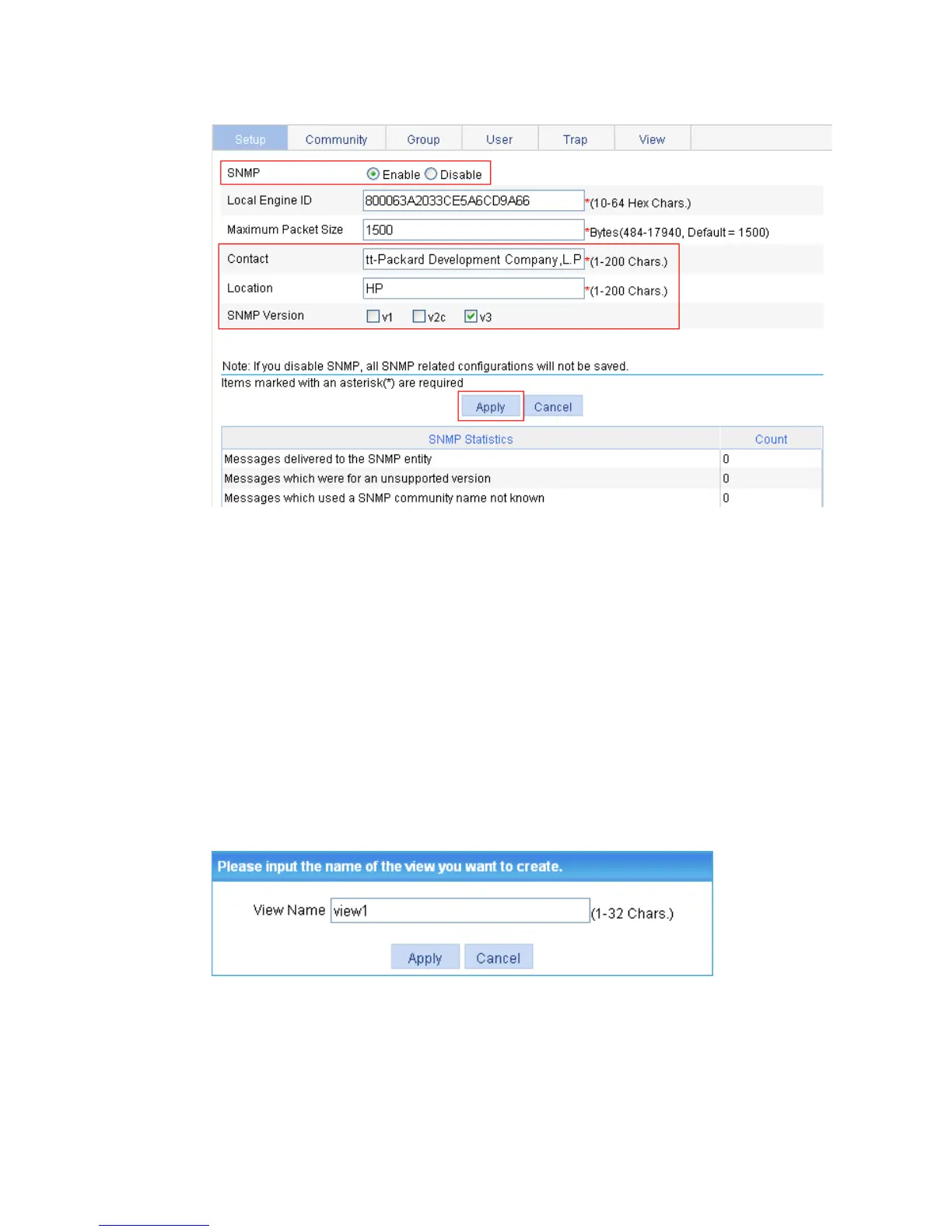

Figure 128 Configuring the SNMP agent
2. Configure an SNMP view:
a. Click the View tab.
b. Click Add.
The page for creating an SNMP view appears.
c. Type view1 in the View Name field.
d. Click Apply.
The page in Figure 130 ap
pears.
e. Select the Included option, type the MIB subtree OID interfaces, and click Add.
f. Click Apply.
A configuration progress dialog box appears.
g. Click Close after the configuration process is complete.
Figure 129 Creating an SNMP view (1)
