141

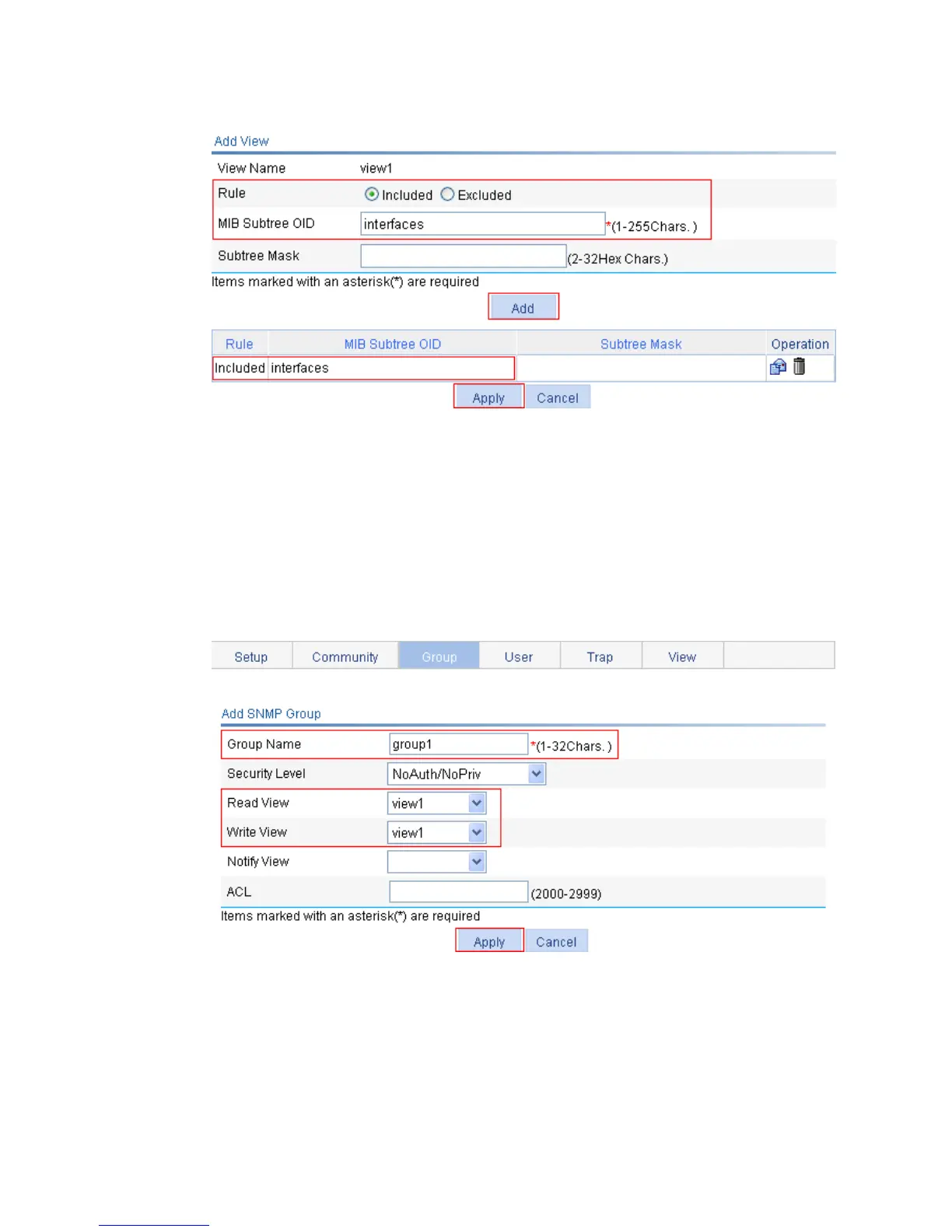

Figure 130 Creating an SNMP view (2)
3. Configure an SNMP group:
a. Click the Group tab.
b. Click Add.
The page in Figure 131 ap
pears.
c. Type group1 in the Group Name field, select view1 from the Read View list, select view1 from
the Write View list.
d. Click Apply.
Figure 131 Creating an SNMP group
4. Configure an SNMP user:
a. Click the User tab.
b. Click Add.
The page in Figure 132 ap
pears.
c. Type user1 in the User Name field, select Auth/Priv from the Security Level list, select group1
from the Group Name list, select MD5 from the Authentication Mode list, type authkey in the
