HP 1910 User Manual

160
A configuration progress dialog box appears.
g. After the configuration process is complete, click Close.

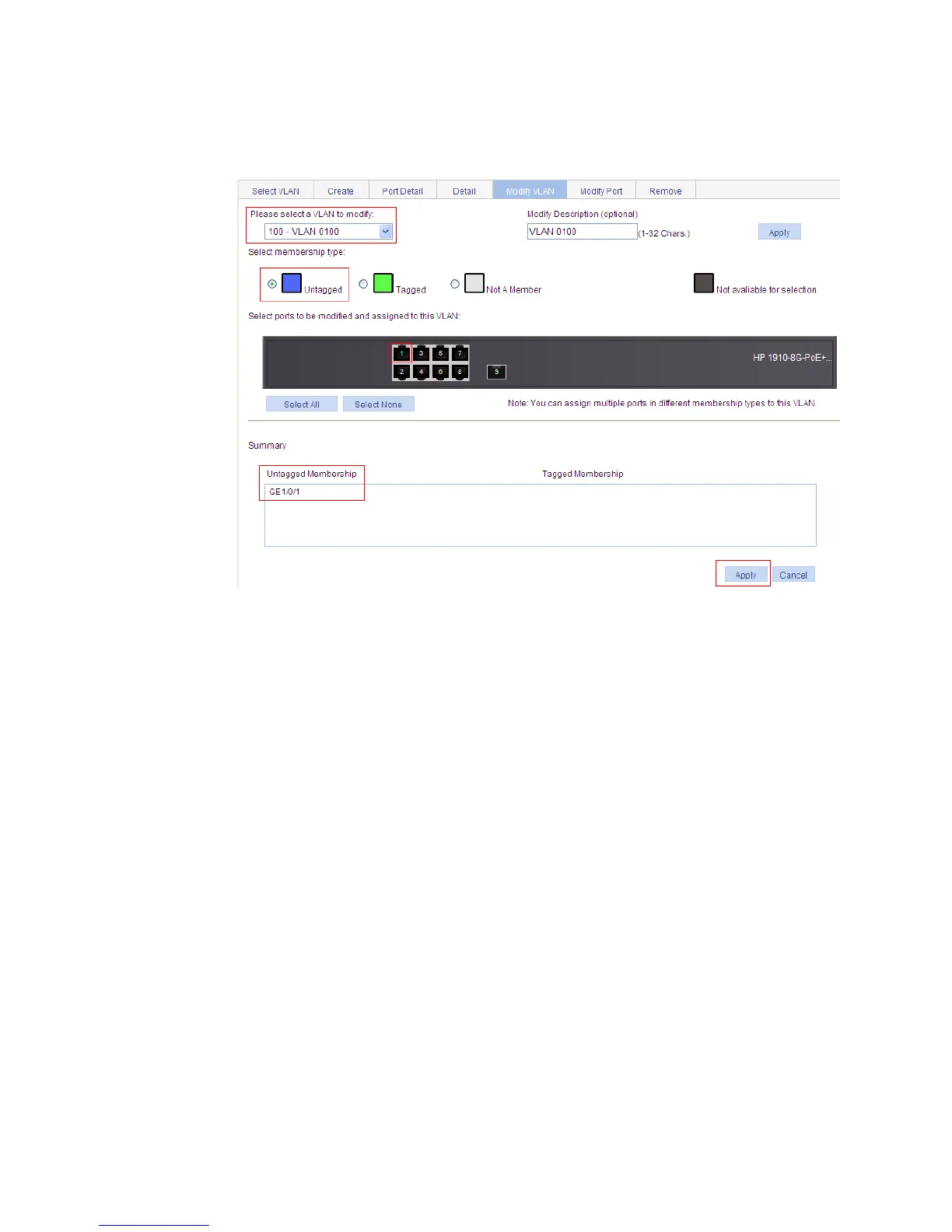

Figure 149 Assigning GigabitEthernet 1/0/1 to VLAN 100 as an untagged member
4. Assign GigabitEthernet 1/0/1 to VLAN 2, and VLAN 6 through VLAN 50 as a tagged member:
a. Click Modify Port to enter the page for modifying the VLANs to which a port belongs.
b. Select GigabitEthernet 1/0/1 on the chassis front device panel, select the Tagged option, and
enter VLAN IDs 2, 6-50.
c. Click Apply.
A configuration progress dialog box appears.
d. After the configuration process is complete, click Close in the dialog box.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
