HP 1910 User Manual

182

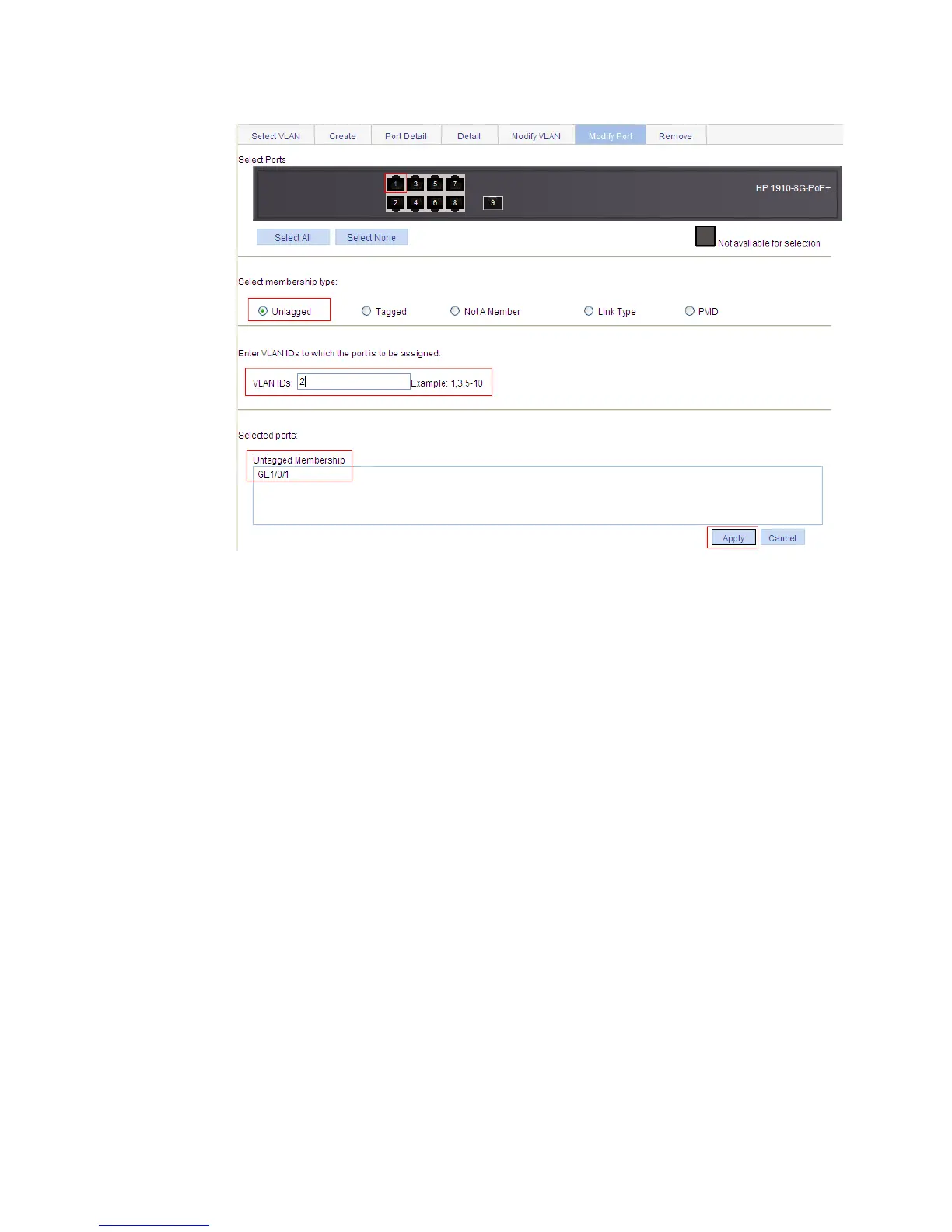

Figure 169 Assigning GigabitEthernet 1/0/1 to VLAN 2 as an untagged member
4. Configure voice VLAN on GigabitEthernet 1/0/1:
a. Select Network > Voice VLAN from the navigation tree.
b. Click the Port Setup tab.
c. Select Manual in the Voice VLAN port mode list.
d. Select Enable in the Voice VLAN port state list.
e. Enter 2 in the VLAN IDs field.
f. Select GigabitEthernet 1/0/1 on the chassis front panel.
g. Click Apply.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
