e. Select Manual.
f. Select 1 from the Instance ID list.
g. Set the VLAN ID to 10.
h. Click Apply.
The system maps VLAN 10 to MSTI 1 and adds the VLAN-to-instance mapping entry to the
VLAN-to-instance mapping list.
i. Repeat the preceding three steps to map VLAN 20 to MSTI 2 and VLAN 30 to MSTI 3 and add
the VLAN-to-instance mapping entries to the VLAN-to-instance mapping list.
j. Click Activate.

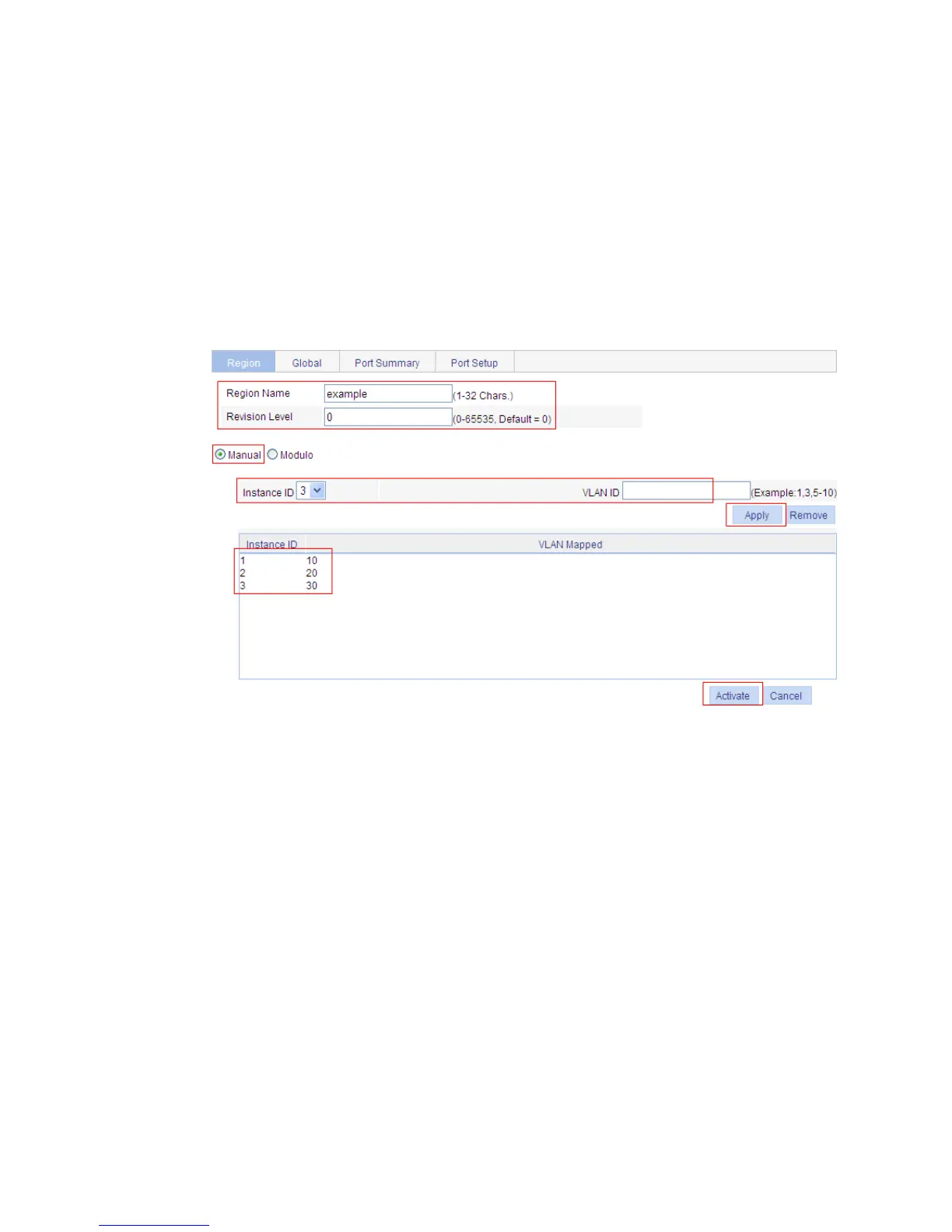

Figure 191 Configuring an MST region
2. Configure MSTP globally:
a. From the navigation tree, select Network > MSTP.
b. Click the Global tab.
c. Select Enable from the Enable STP Globally list.
d. Select MSTP from the Mode list.
e. Select the box before Instance.
f. Set the Instance ID field to 1.
g. Set the Root Type field to Primary.
h. Click Apply.
