HP 1910 User Manual

255
By default, the Port Setup tab is displayed.
b. Click the GigabitEthernet1/0/1 port name in the port list.
c. Click the Status Information tab at the lower half of the page.
The output shows that port GigabitEthernet 1/0/1 is connected to an MED neighbor device.

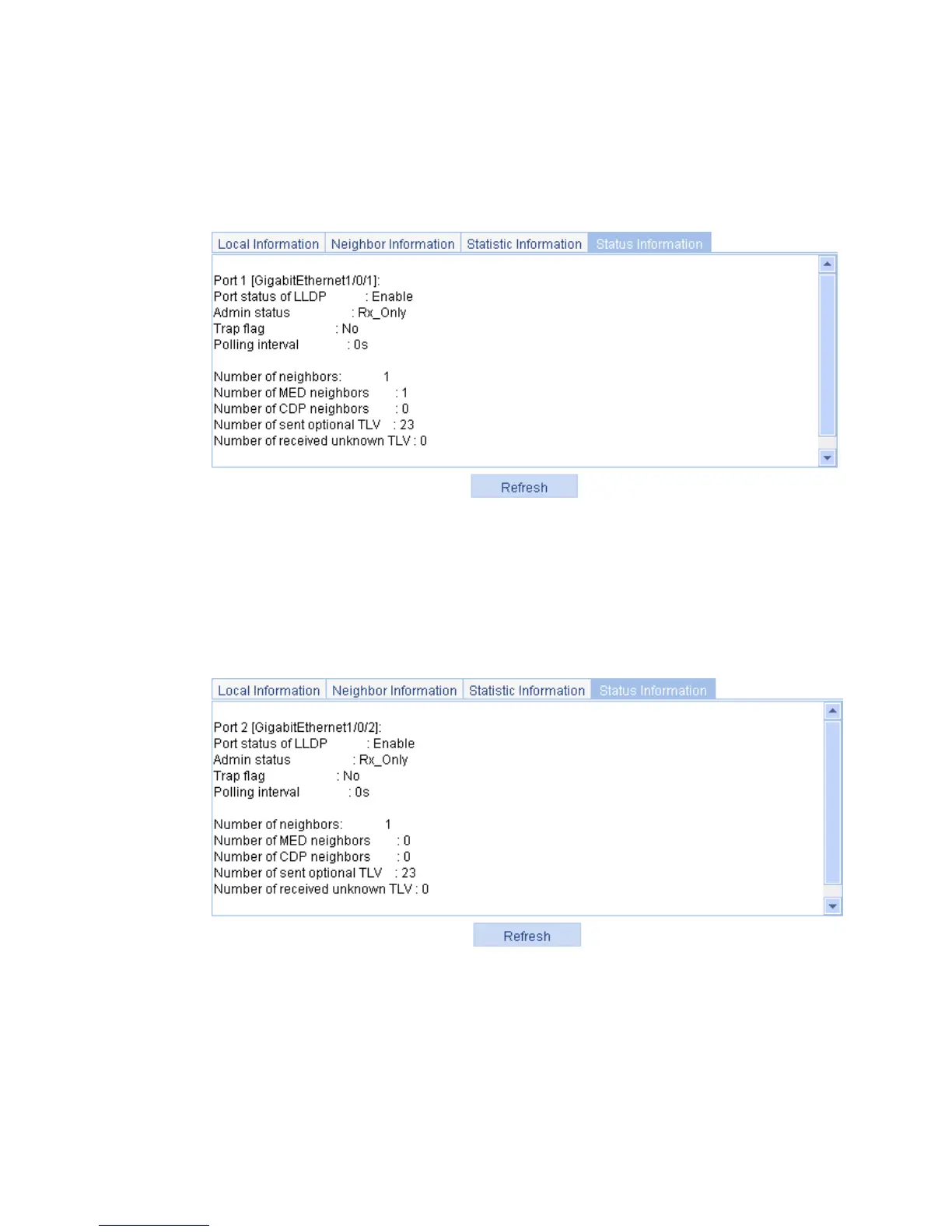

Figure 219 Viewing the status of port GigabitEthernet 1/0/1
2. Display the status information of port GigabitEthernet1/0/2 on Switch A:
a. Click the GigabitEthernet1/0/2 port name in the port list.
b. Click the Status Information tab at the lower half of the page.
The output shows that port GigabitEthernet 1/0/2 is connected to a non-MED neighbor device
(Switch B).
Figure 220 Viewing the status of port GigabitEthernet 1/0/2
3. Tear down the link between Switch A and Switch B.
4. Click Refresh to display the status information of port GigabitEthernet1/0/2 on Switch A.
The updated status information of port GigabitEthernet 1/0/2 shows that no neighbor device is
connected to the port.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
