269

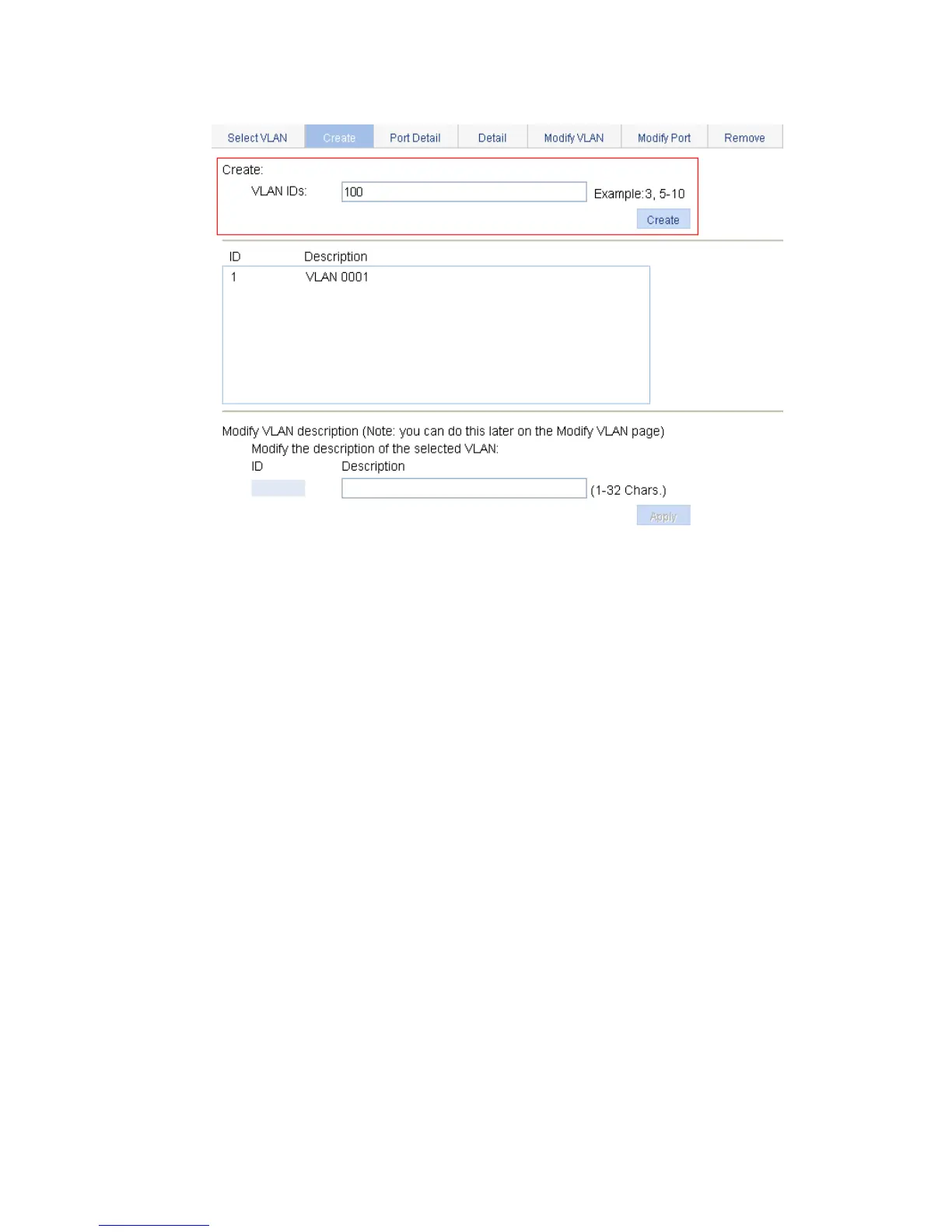

Figure 235 Creating VLAN 100
2. Add GigabitEthernet 1/0/1 to VLAN 100:
a. Click the Modify Port tab
b. Select interface GigabitEthernet 1/0/1 in the Select Ports area.
c. Select the Untagged option in the Select membership type area.
d. Enter 100 for VLAN Ids.
e. Click Apply.
f. After the configuration process is complete, click Close.
