270

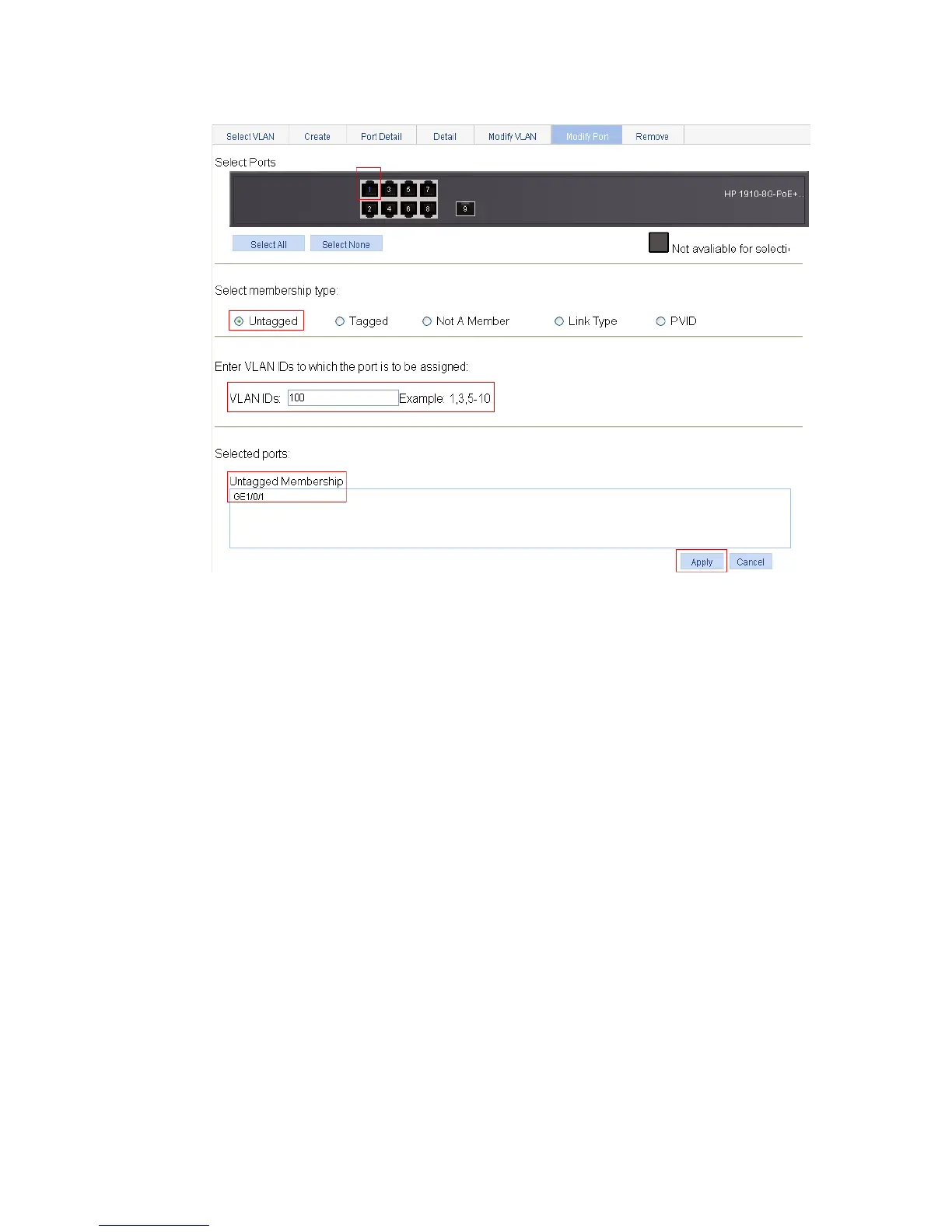

Figure 236 Adding GigabitEthernet 1/0/1 to VLAN 100
3. Create VLAN-interface 100:
a. From the navigation tree, select Network > VLAN Interface.
b. Click the Create tab.
c. Enter 100 for VLAN ID.
d. Select the Configure Primary IPv4 Address box.
e. Select the Manual option.
f. Enter 192.168.1.2 for IPv4 Address, and enter 24 or 255.255.255.0 for Mask Length.
g. Click Apply.
