HP 1910 User Manual

271

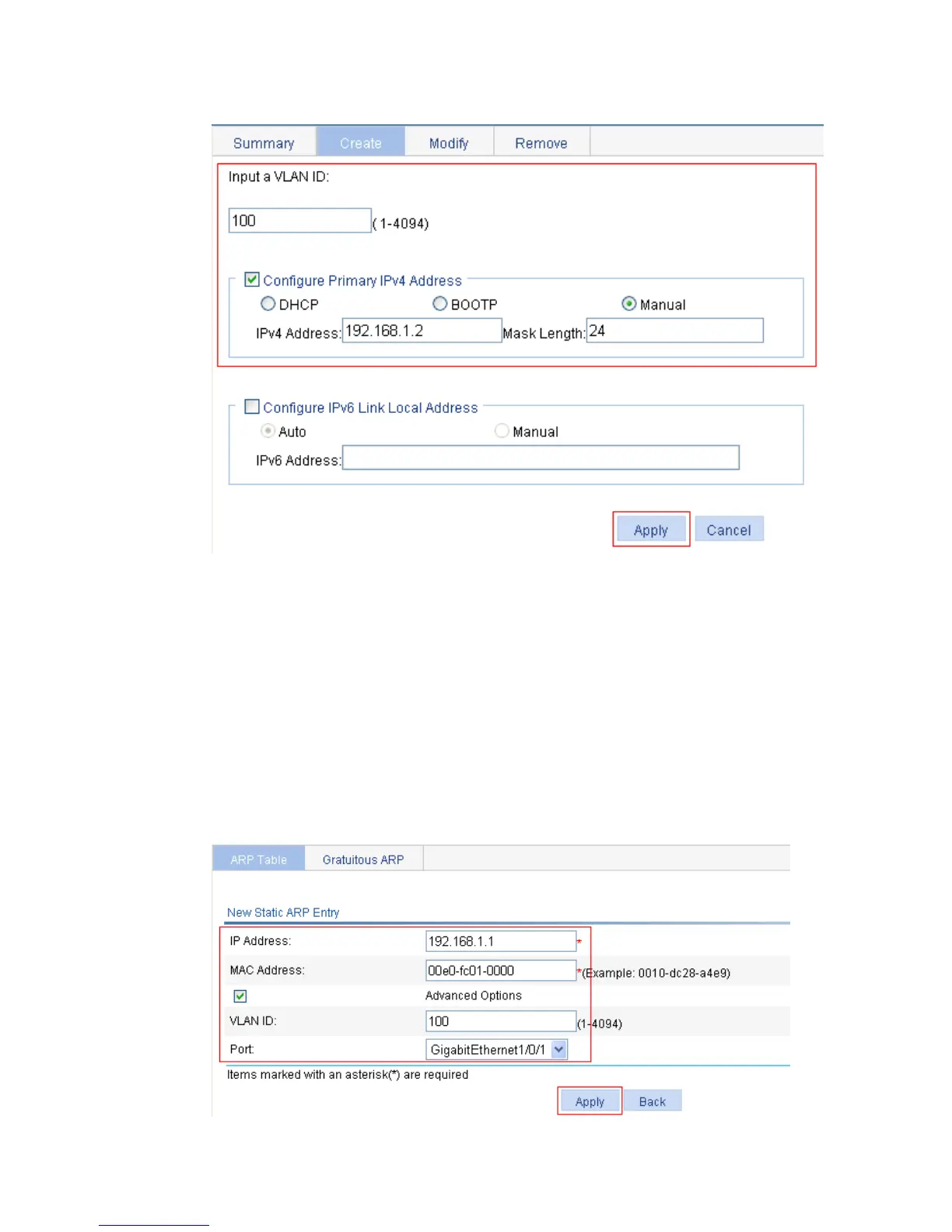

Figure 237 Creating VLAN-interface 100
4. Create a static ARP entry:
a. From the navigation tree, select Network > ARP Management.
The ARP Table page appears.
b. Click Add.
c. Enter 192.168.1.1 for IP Address, enter 00e0-fc01-0000 for MAC Address.
d. Select the Advanced Options box.
e. Enter 100 for VLAN ID.
f. Select GigabitEthernet1/0/1 for Port.
g. Click Apply.
Figure 238 Creating a static ARP entry

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
