HP 1910 User Manual

298

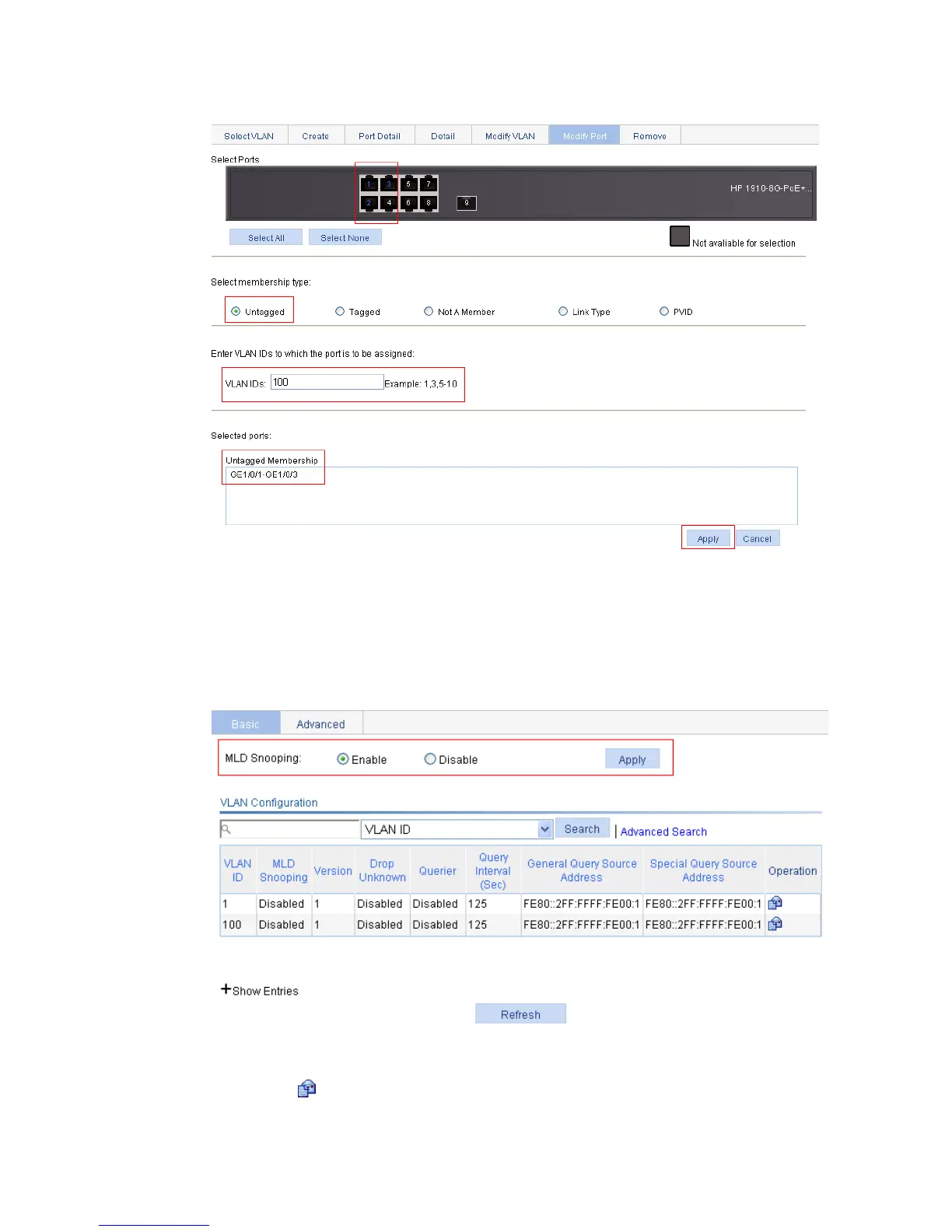

Figure 263 Assigning ports to VLAN 100
3. Enable MLD snooping globally:
a. Select Network > MLD snooping from the navigation tree.
b. Select Enable.
c. Click Apply.
Figure 264 Enabling MLD snooping globally
4. Enable MLD snooping and the function of dropping unknown IPv6 multicast data for VLAN 100:
a. Click the icon for VLAN 100.
b. Select Enable for MLD snooping.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
