HP 1910 User Manual

329
b. On that page that appears, select the Enable option next to DHCP Relay and select 1 for Server
Group ID.
c. Click Apply.

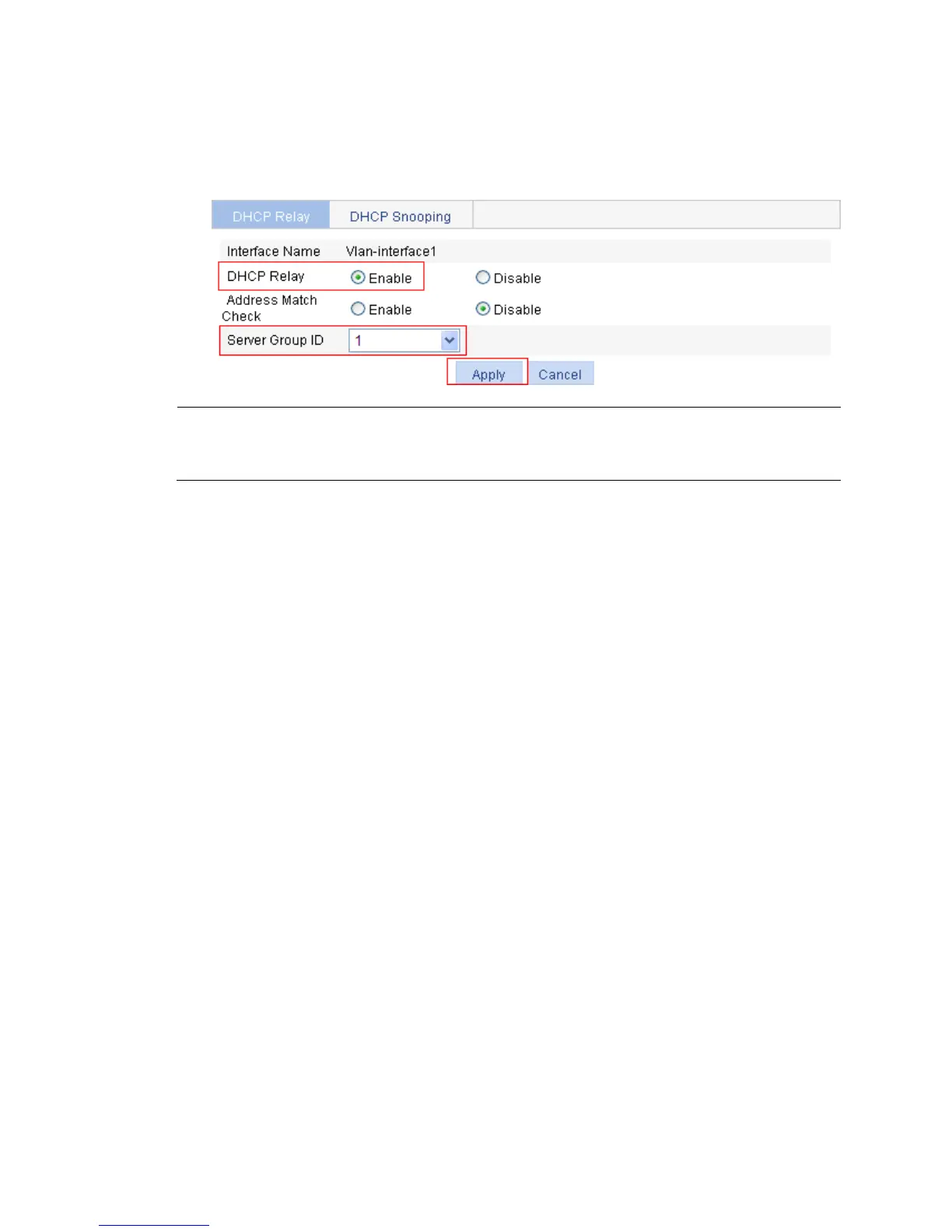

Figure 297 Enabling the DHCP relay agent on an interface and correlate it with a server group
NOTE:
Because the DHCP relay agent and server are on different subnets, you need to configure a static route o
r
dynamic routing protocol to make them reachable to each other.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
