365
2. Configure the RADIUS primary and secondary authentication servers:
a. Select the server type Authentication Server.
b. Enter the IP address 10.1.1.1, enter the port number 1812, and select the primary server status
active.
c. Enter the IP address 10.1.1.2, enter the port number 1813, and select the secondary server
status active.
d. Click Apply.

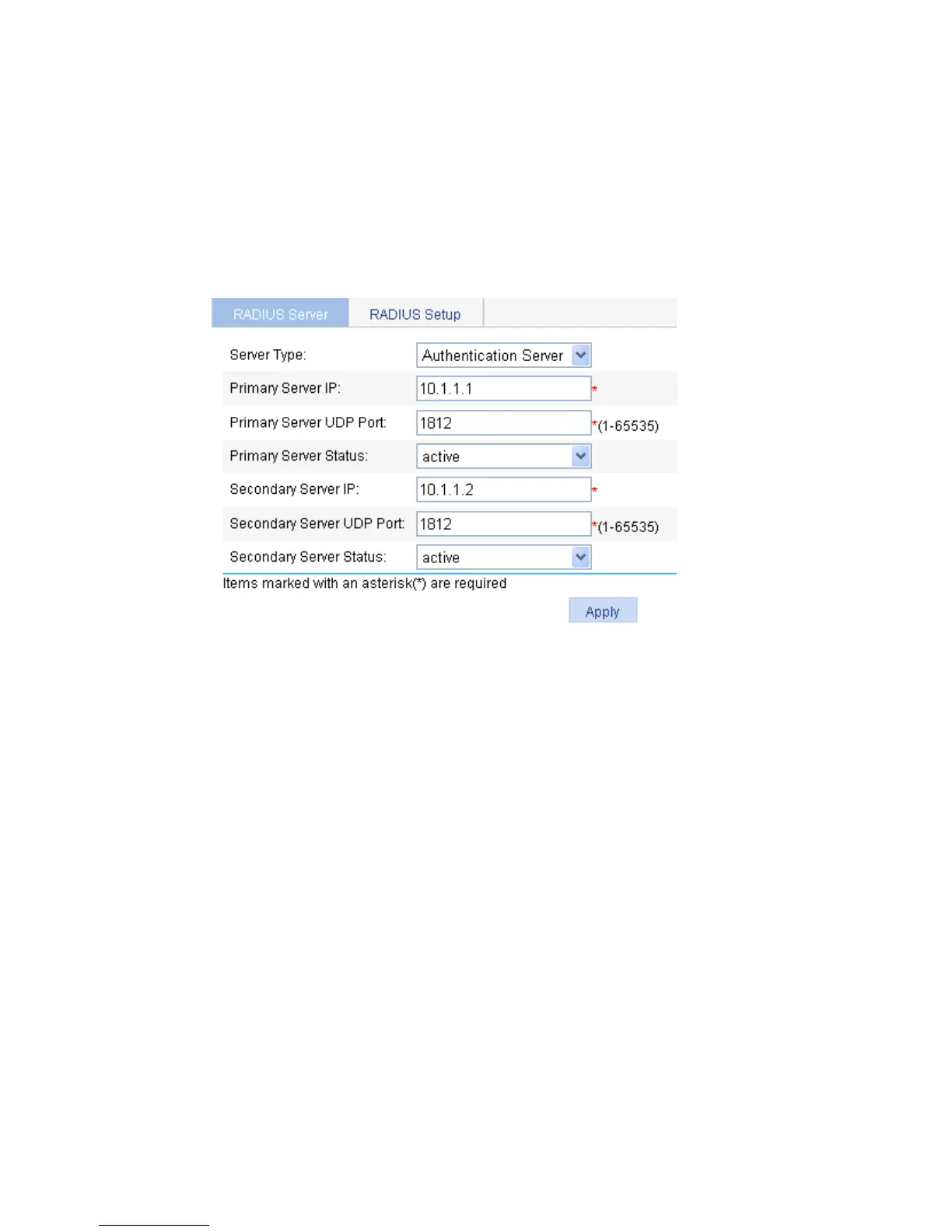

Figure 333 Configuring the RADIUS authentication servers
3. Click the RADIUS Setup tab.
4. Configure a RADIUS scheme:
a. Select the server type extended.
b. Select the Authentication Server Shared Key box, enter name in the field next to the box and
the Confirm Authentication Shared Key field.
c. Select the Accounting Server Shared Key box, enter name in the field next to the box and the
Confirm Accounting Shared Key field.
d. Enter 5 as the server timeout timer.
e. Enter 5 as the maximum number of request transmission attempts.
f. Enter 15 as the realtime accounting interval.
g. Click Apply.
