370
b. Enter the IP address 10.1.1.1, enter the port number 1812, and select the primary server status
active.
c. Click Apply.

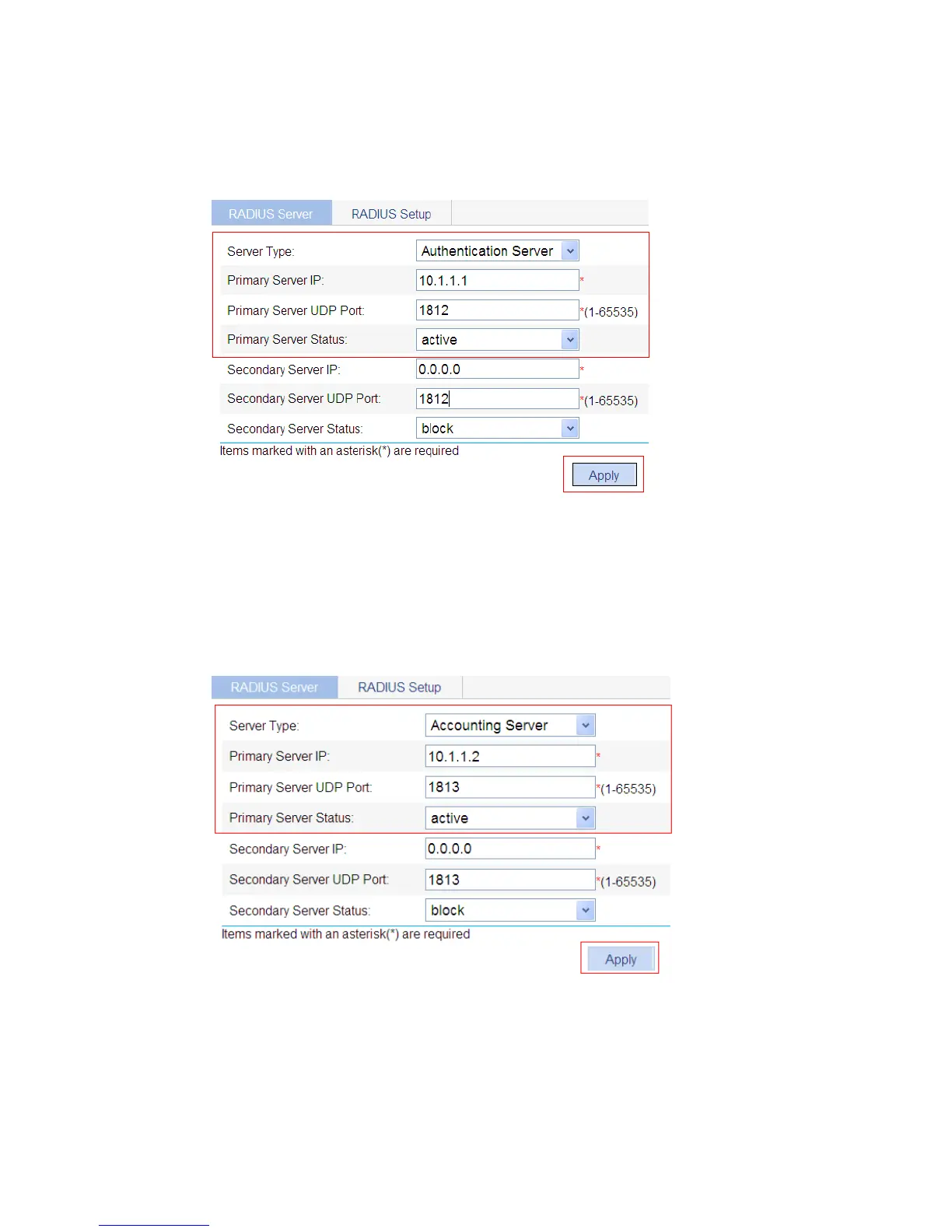

Figure 341 Configuring the RADIUS primary authentication server
3. Configure the RADIUS primary accounting server:
a. Select the server type Accounting Server.
b. Enter the IP address 10.1.1.2, enter the port number 1813, and select the primary server status
active.
c. Click Apply.
Figure 342 Configuring the RADIUS primary accounting server
4. Click the RADIUS Setup tab.
5. Configure a RADIUS scheme:
a. Select the server type extended.
b. Select the Authentication Server Shared Key box, and enter abc in the field next to the box and
the Confirm Authentication Shared Key field.
