HP 1910 User Manual

408
Make sure the RADIUS server is correctly configured to provide authentication, authorization, and
accounting functions. In this example, create a portal user account with the account name userpt on the
RADIUS server.
Perform the following configuration on the DHCP server:
• Specify the IP address ranges (192.168.1.0/24, 3.3.3.0/24, 2.2.2.0/24) for address allocation.
• Specify the default gateway address 192.168.1.1.
• Specify the leases for the assigned IP addresses and make sure there is a route to the host.
Configuring the switch
1. Add Ethernet ports to VLANs and assign IP addresses to the VLAN interfaces. (Details not shown)
2. Configure the RADIUS authentication server:
a. Select Authentication > RADIUS from the navigation tree.
The RADIUS server configuration page appears, as shown in Figure 383.
b. Selec
t Authentication Server as the server type, enter the IP address 1.1.1.2 and port number
1812, select active from the Primary Server Status list, and click Apply.

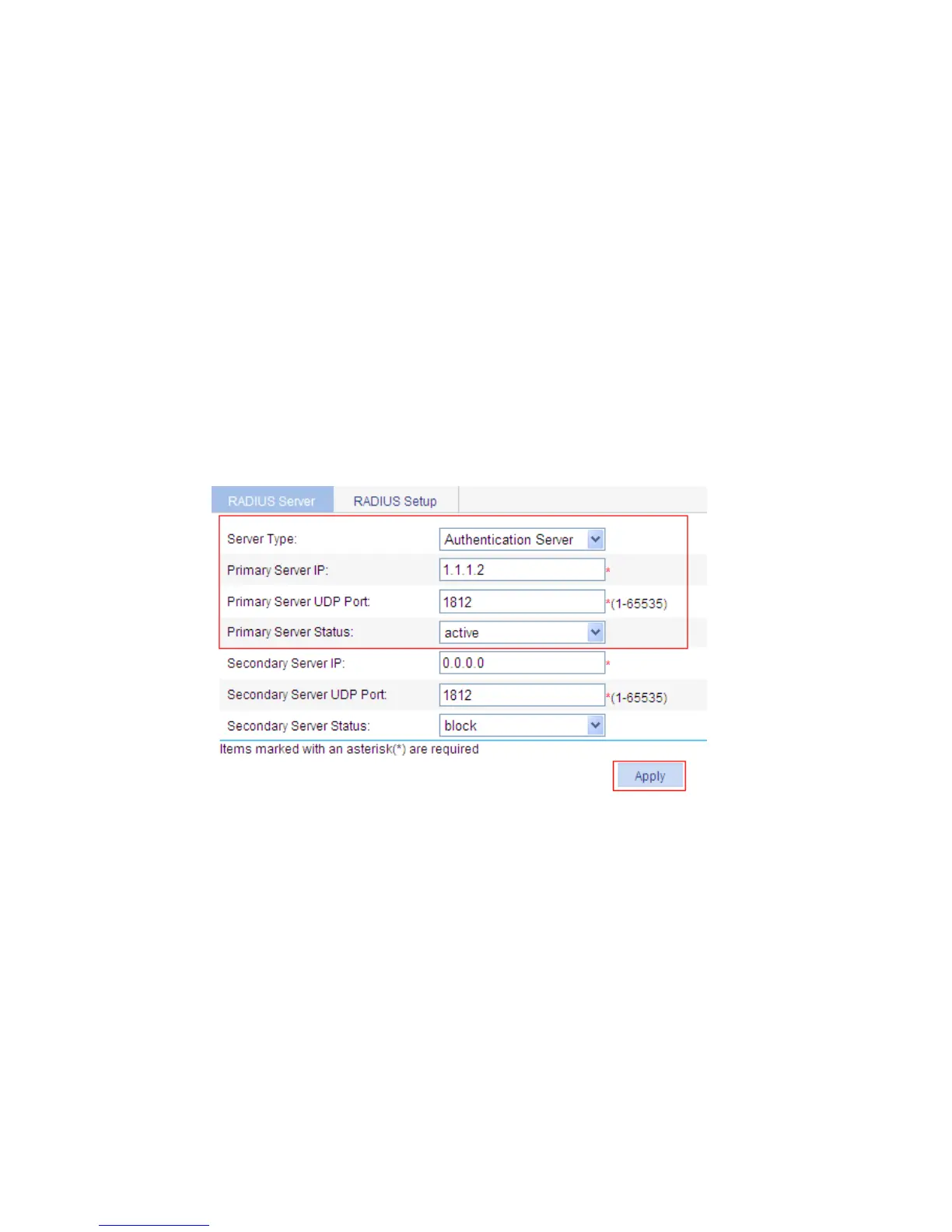

Figure 383 Configuring the RADIUS authentication server
3. Configure a RADIUS accounting server:
On the RADIUS server configuration page, select Accounting Server as the server type, and enter
the IP address 1.1.1.2 and port number 1813, select active from the Primary Server Status list, and
click Apply.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
