439
Select Authentication Server as the server type.
Enter 10.110.91.146 as the IP address of the primary authentication server
Enter 1812 as the UDP port of the primary authentication server.
Select active as the primary server status.
c. Click Apply.

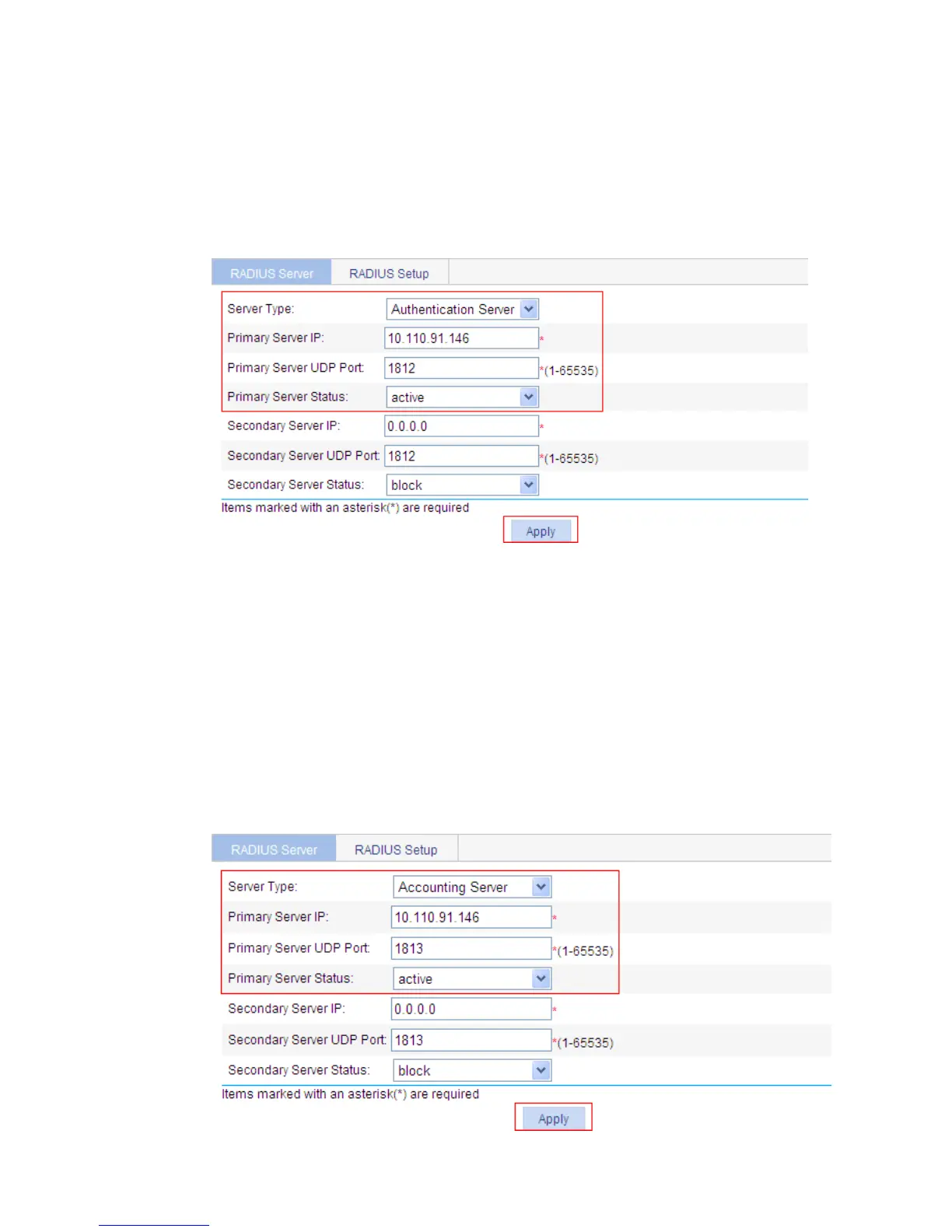

Figure 420 Configuring the RADIUS authentication server
# Configure the RADIUS accounting server.
a. Select Authentication > RADIUS from the navigation tree.
The RADIUS server configuration page appears.
b. Configure the following parameters, as shown in Figure 421.
Selec
t Accounting Server as the server type.
Enter 10.110.91.146 as the IP address of the primary accounting server.
Enter 1813 as the UDP port of the primary accounting server.
Select active as the primary server status.
c. Click Apply.
Figure 421 Configuring the RADIUS accounting server
