HP 1910 User Manual

440
# Configure the RADIUS communication parameters.
a. Select Authentication > RADIUS from the navigation tree and then click the RADIUS Setup tab.
The RADIUS parameter configuration page appears.
b. Configure the following parameters, as shown in Figure 422.
Selec
t extended as the server type.
Select the Authentication Server Shared Key box and enter expert.
Enter expert in the Confirm Authentication Shared Key field.
Select the Accounting Server Shared Key box and enter expert.
Enter expert in the Confirm Accounting Shared Key field.
Select without-domain for Username Format.
c. Click Apply.

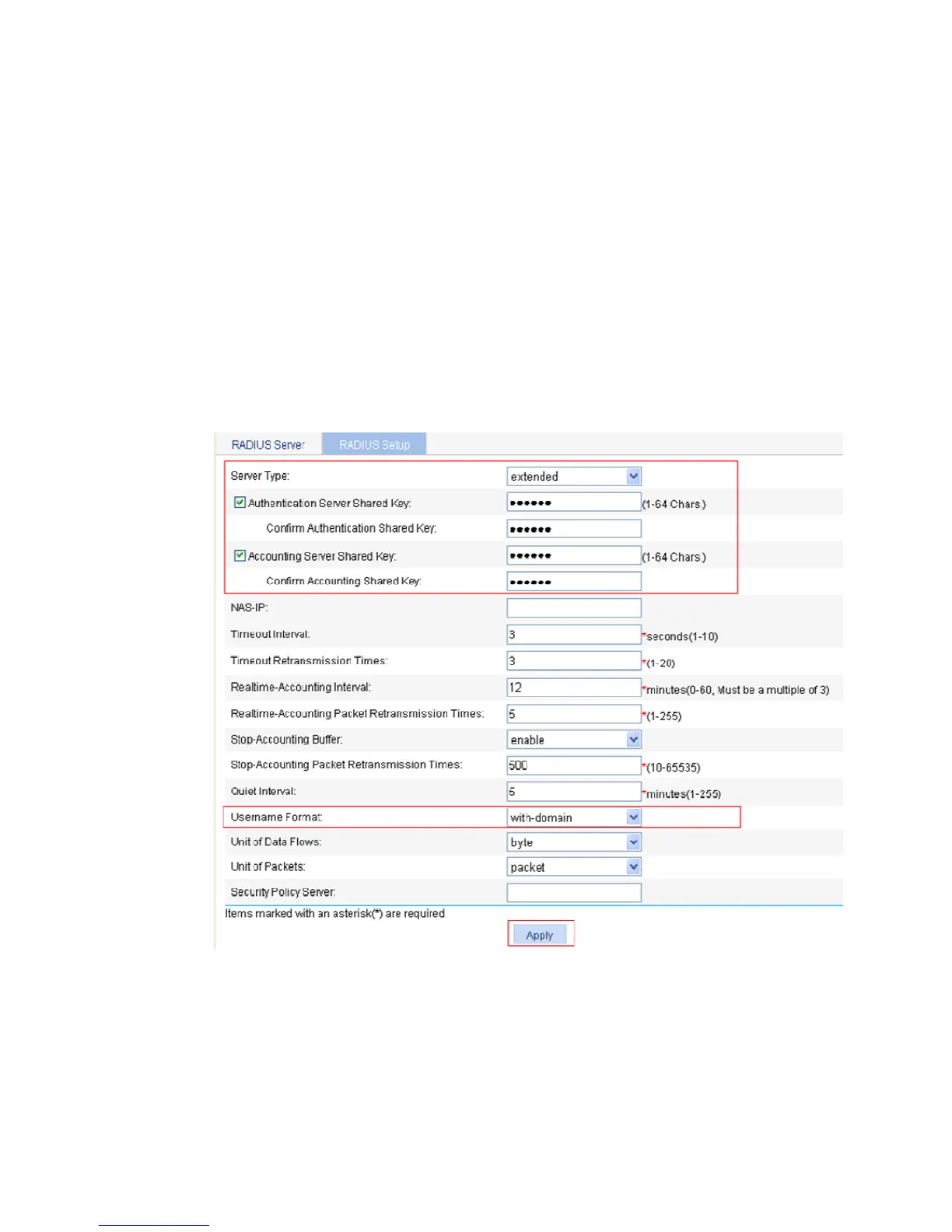

Figure 422 Configuring RADIUS communication parameters
4. Configure AAA:
# Create an ISP domain.
a. Select Authentication > AAA from the navigation tree.
The domain setup page appears.
b. Configure the following parameters, as shown in Figure 423.
Enter test in th
e Domain Name field.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
