HP 1910 User Manual

441
Select Enable to use the domain as the default domain.
c. Click Apply.

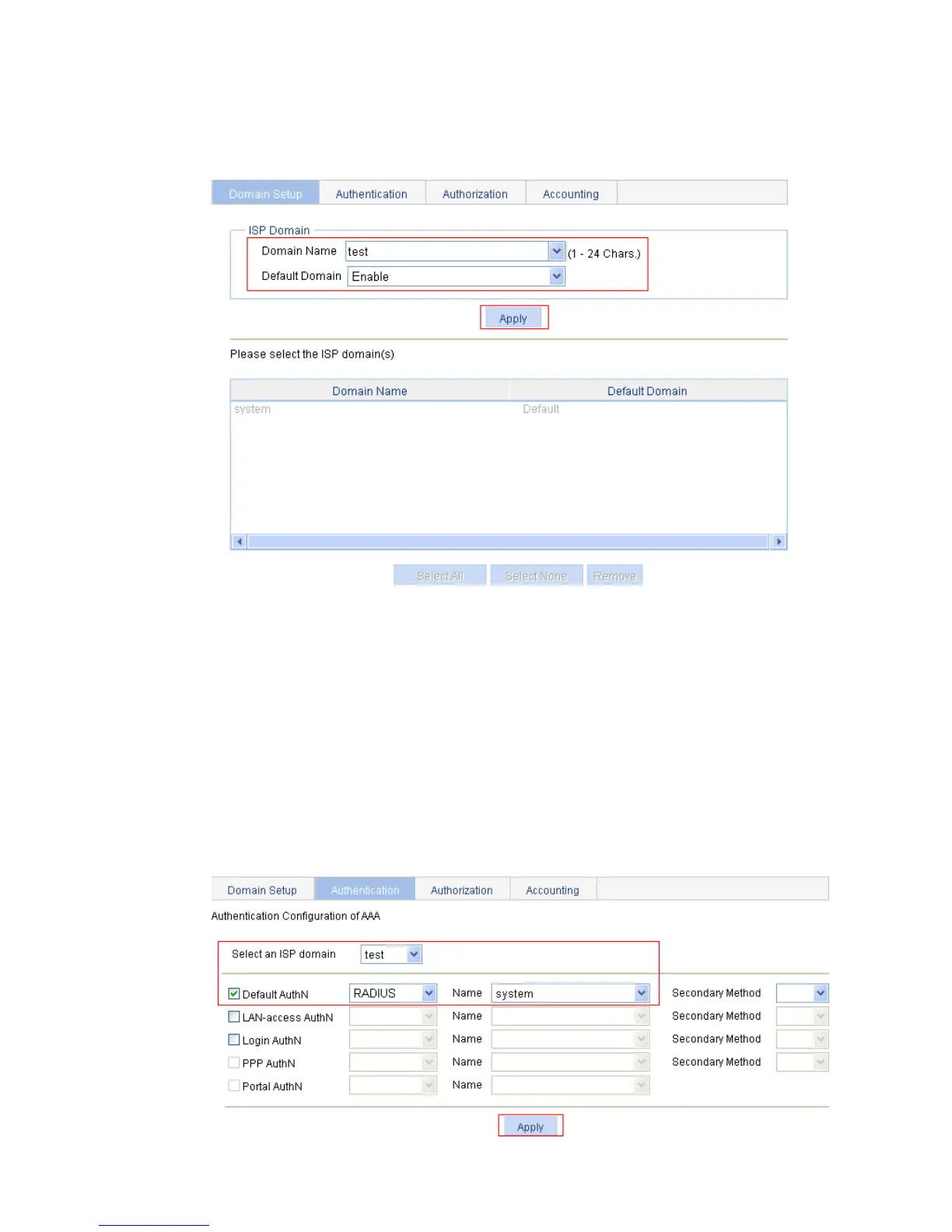

Figure 423 Adding an ISP domain
# Configure the authentication method for the ISP domain.
a. Select Authentication > AAA from the navigation tree, and then click the Authentication tab.
b. Configure the following parameters, as shown in Figure 424.
Select the domain name te
st.
Select the Default AuthN box and then select RADIUS as the authentication mode.
Select system from the Name list to use it as the authentication scheme.
c. Click Apply.
A configuration progress dialog box appears, as shown in Figure 425.
d. A
fter the configuration process is complete, click Close.
Figure 424 Configuring the authentication method for the ISP domain

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
