HP 1910 User Manual

442

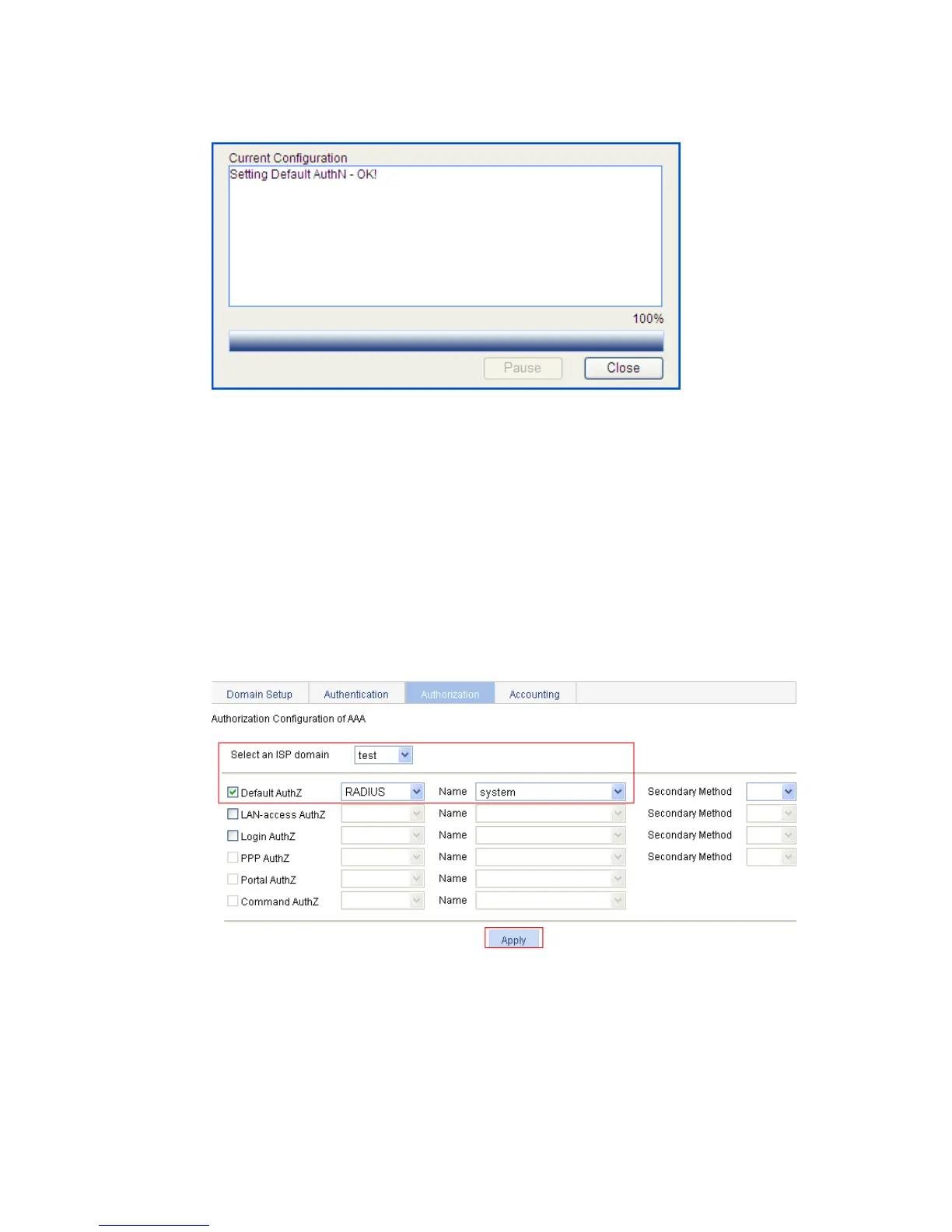

Figure 425 Configuration progress dialog box
# Configure the authorization method for the ISP domain.
a. Select Authentication > AAA from the navigation tree, and then click the Authorization tab.
b. Configure the following parameters, as shown in Figure 426.
Select the domain name te
st.
Select the Default AuthZ box and then select RADIUS as the authorization mode.
Select system from the Name list to use it as the authorization scheme.
c. Click Apply.
A configuration progress dialog box appears.
d. After the configuration process is complete, click Close.
Figure 426 Configuring the authorization method for the ISP domain
# Configure the accounting method for the ISP domain.
a. Select Authentication > AAA from the navigation tree, and then click the Accounting tab.
b. Configure the following parameters, as shown in Figure 427.
Select the domain name te
st.
Select the Accounting Optional box and then select Enable.
Select the Default Accounting box and then select RADIUS as the accounting mode.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
