6. Click OK.

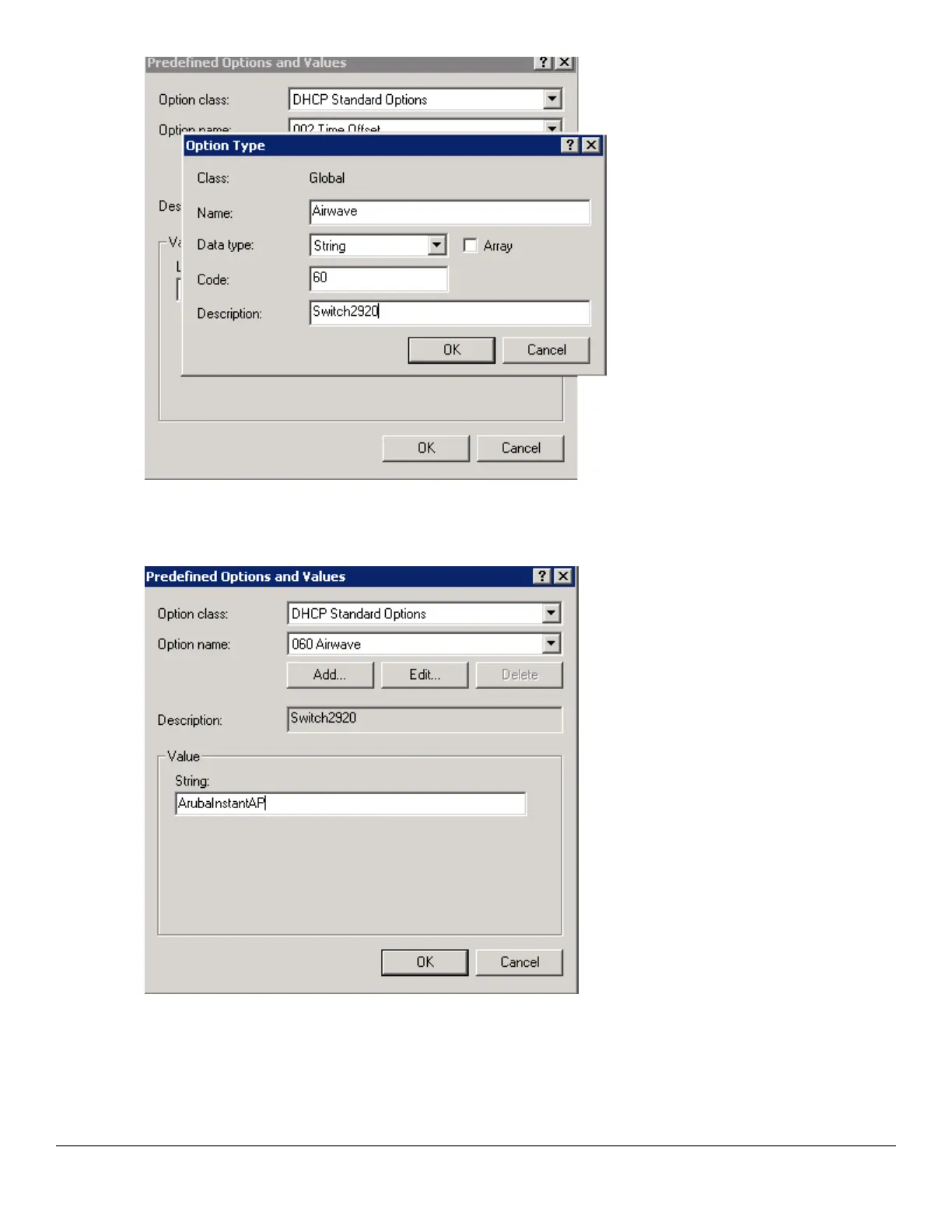

7. From the Predefined Options and Values screen, under Value, enter the String ArubaInstantAP. The

string is case-sensitive and must be ArubaInstantAP.

8. Click OK.

9. Under IPv4, expand Scope. Right-click Scope Options and select Configure Options...

298 Aruba 2930F / 2930M Management and Configuration Guide

for ArubaOS-Switch 16.08
