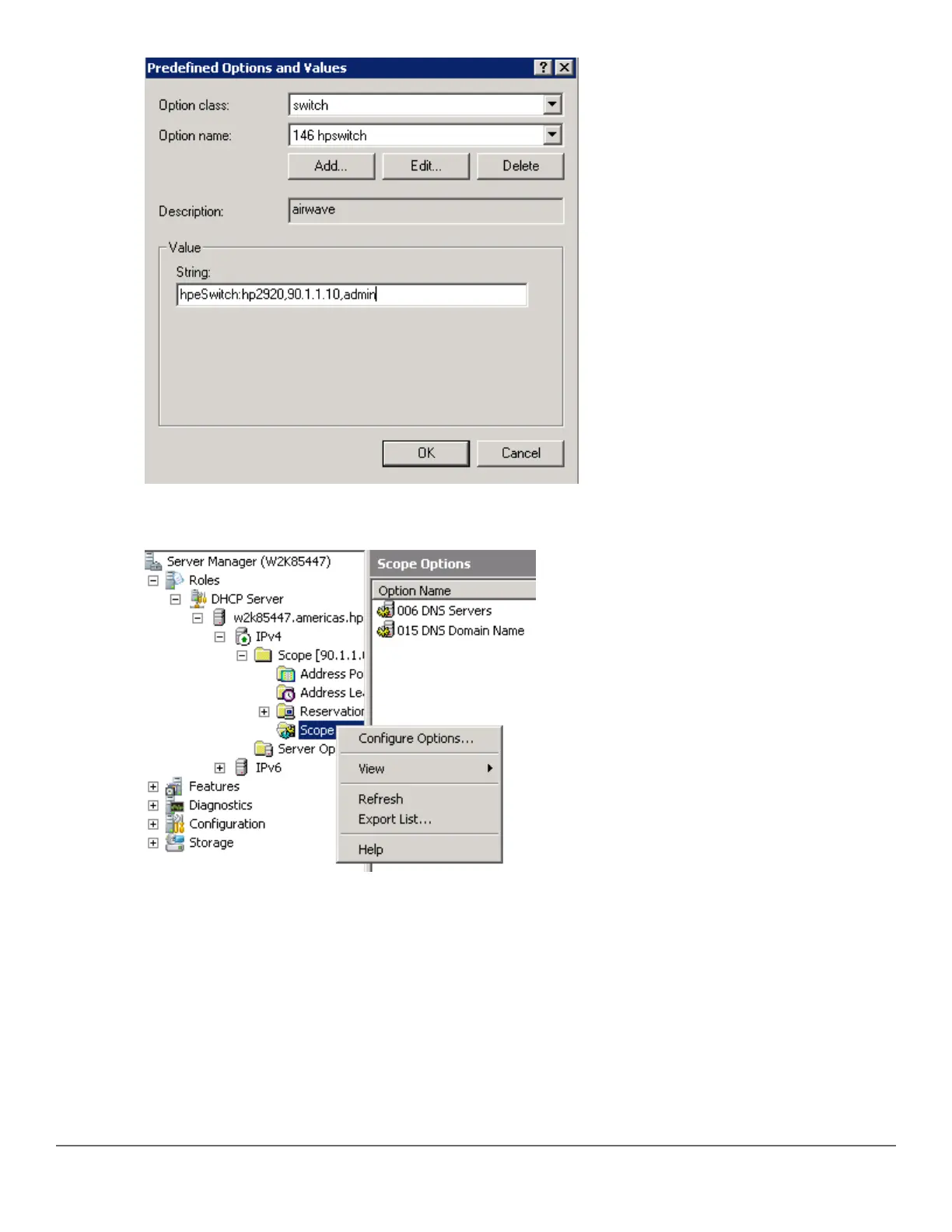

16. Click OK.

17. Under IPv4, expand Scope. Right-click Scope Options and select Configure Options...

18. From the Scope Options window:

a. Select the Advanced tab.

b. Under Vendor class, select the desired switch. In this example, switch.

c. Select the 146 switch option.

d. Click OK.

Chapter 10 Zero Touch Provisioning with AirWave and Central 307
