HP Aruba JL253A - Page 306

11. Click Add....

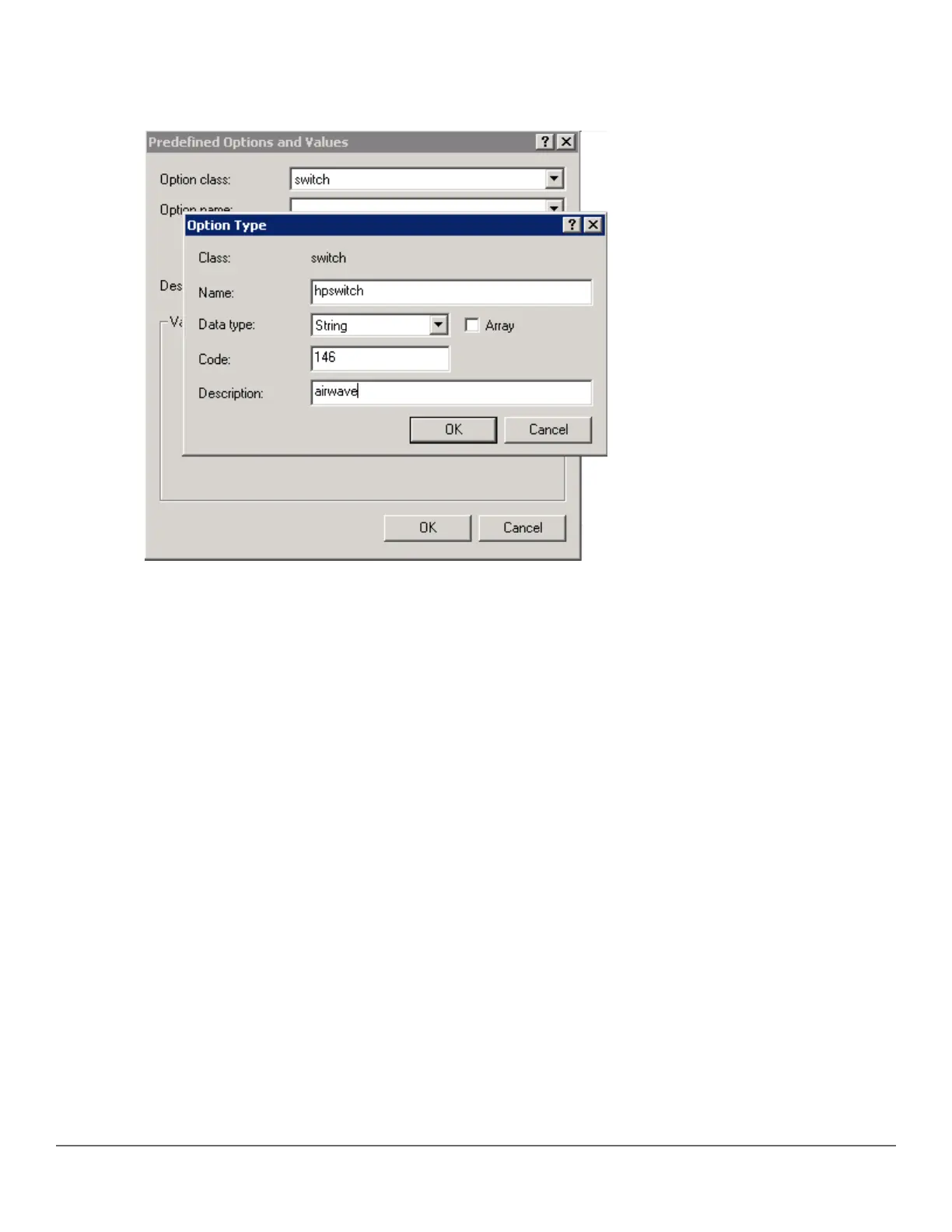

12. From the Option Type window, enter the desired Class (any), the Data type (select string), the Code (enter
146), and the Description (any).
13. Click OK.
14. Under the Predefined Options and Values window, enter the Value String. In this example, enter
hpeSwitch:hp2920,90.1.1.10, admin. The String has the following format:
<Group>:<Topfolder>,<AMP IP>,<shared secret>
15. To add sub-folders, use the following format:
<Group>:<Topfolder>:<folder1>,<AMP IP>,<shared secret>
306 Aruba 2930F / 2930M Management and Configuration Guide
for ArubaOS-Switch 16.08
