8. Click OK.

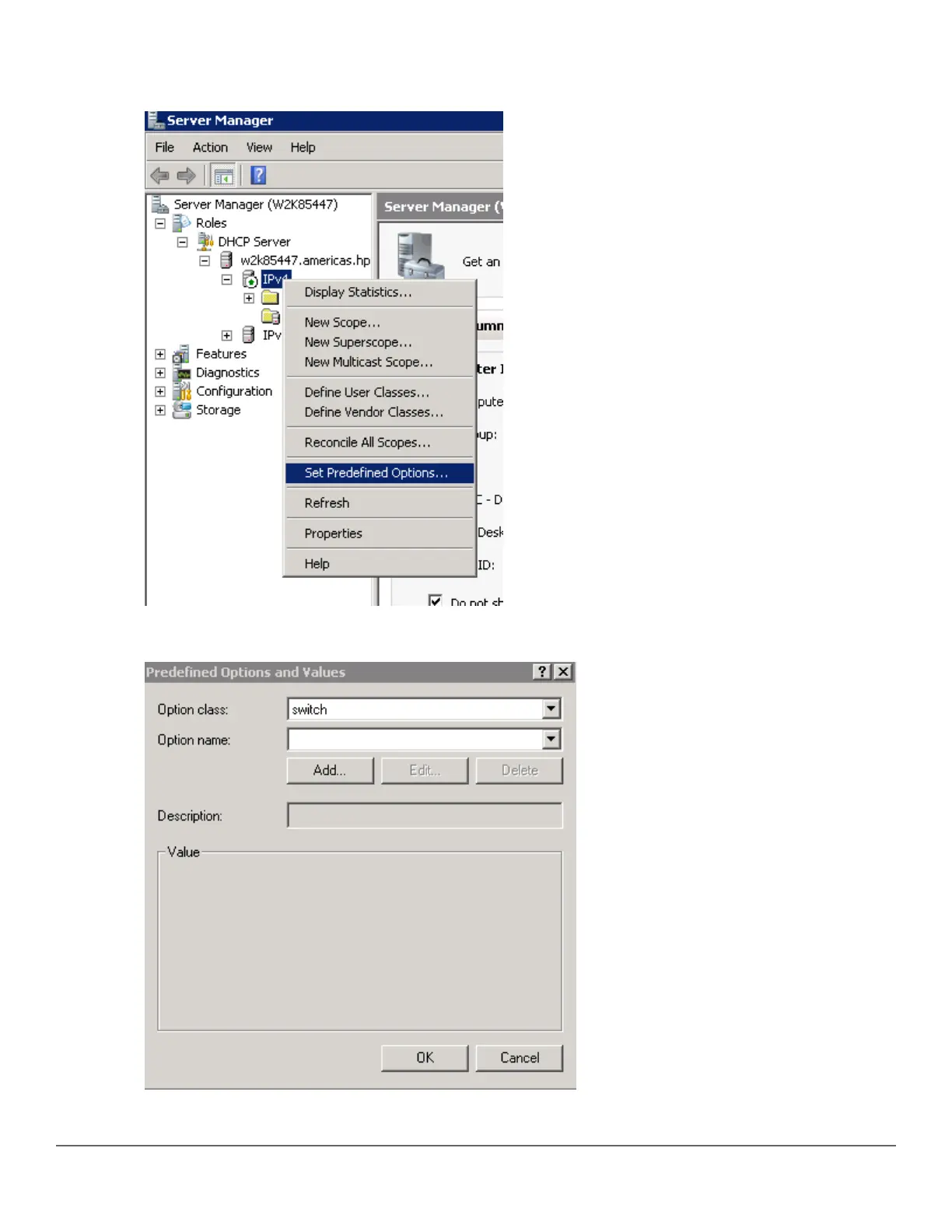

9. Right-click IPv4 and select Set Predefined Options....

10. From the Predefined Options and Values window, select Option class. The Option Class displayed is the

one that you configured under DHCP Vendor Class. In this example, the Option Class is switch.

Chapter 10 Zero Touch Provisioning with AirWave and Central 305
