Hardware options installation 101
14.
Connect all necessary internal cables to the storage controller. For internal cabling information, see
"SATA and mini-SAS cabling (on page 140)."

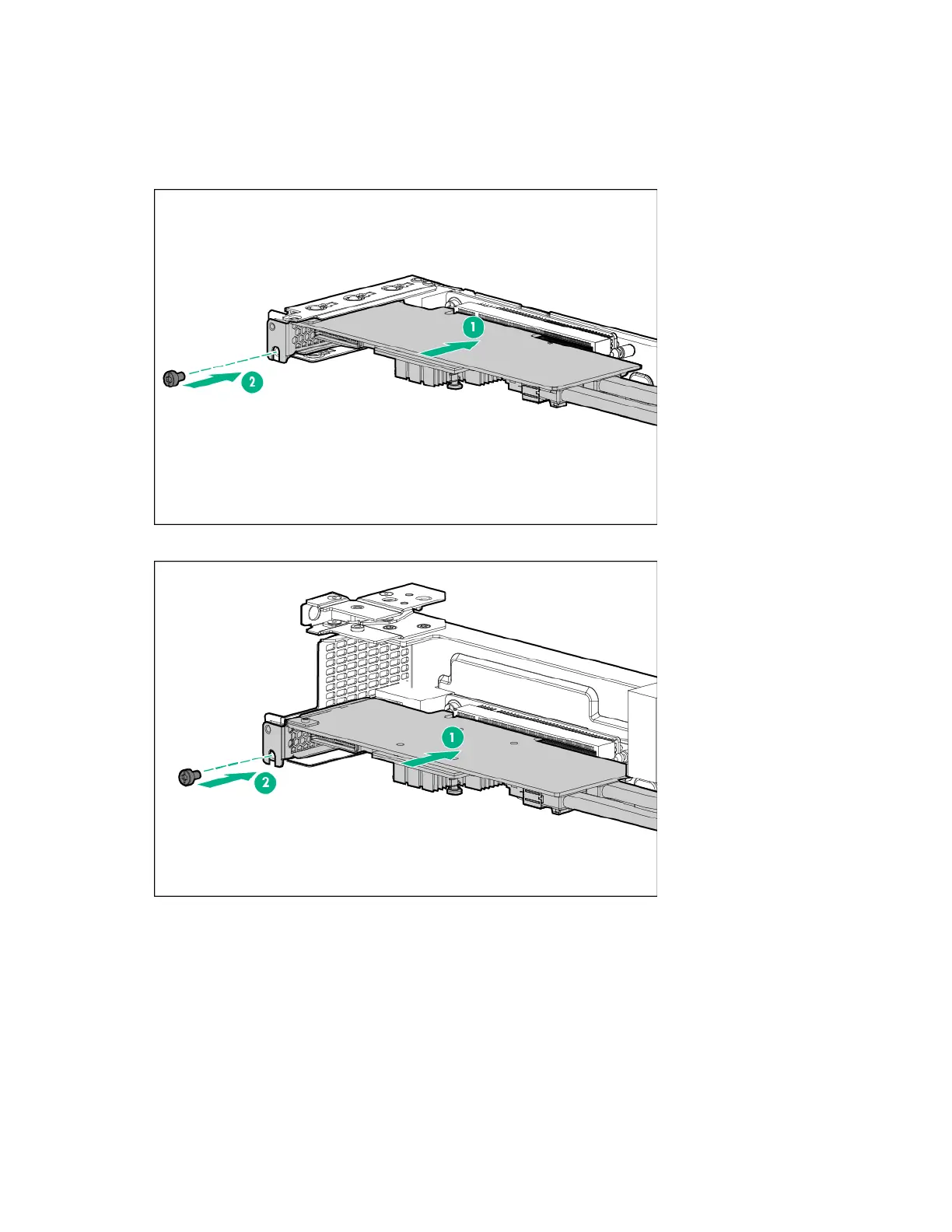

15. Install the storage controller into the riser cage assembly and secure it to the riser cage with one
T-15 screw.
o Slot 1 of the single-slot left PCI riser cage assembly
o Slot 1 of the single-slot 2U node PCI riser cage assembly
