329
c. Enter the port group name.
d. Select the configured IP address group.
The IP address used by the user to access the network must be within this IP address
group.
e. Use the default settings for other parameters.
f. Click OK.

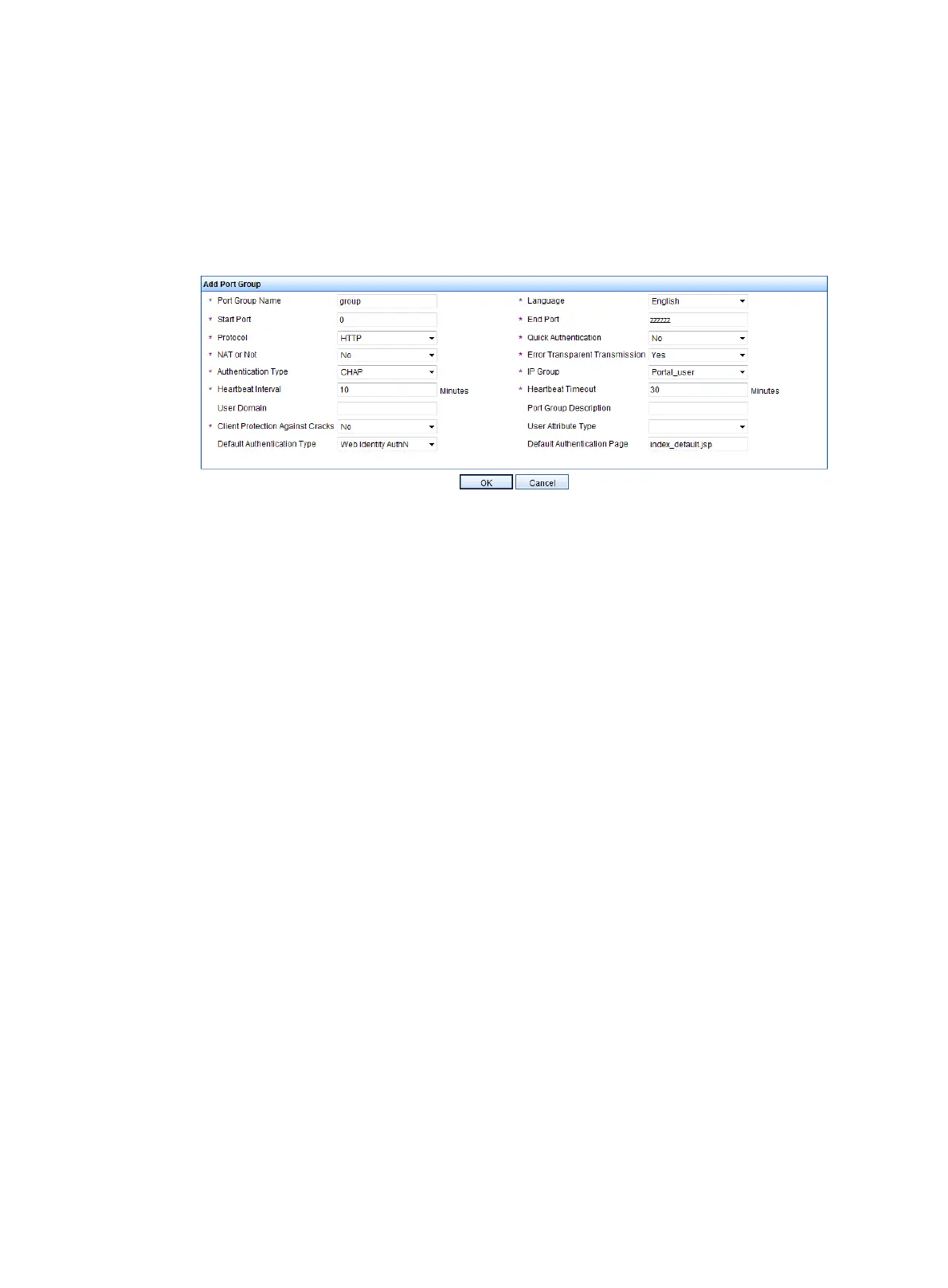

Figure 110 Adding a port group
5. Select User Access Manager > Service Parameters > Validate System Configuration from
the navigation tree to validate the configurations.
Configuring the router
1. Configure a RADIUS scheme:
# Create RADIUS scheme rs1 and enter its view.
<Router> system-view
[Router] radius scheme rs1
# Configure the server type for the RADIUS scheme. When using the IMC server, configure the
RADIUS server type as extended.
[Router-radius-rs1] server-type extended
# Specify the primary authentication server and primary accounting server, and configure the
keys for communication with the servers.
[Router-radius-rs1] primary authentication 192.168.0.112
[Router-radius-rs1] primary accounting 192.168.0.112
[Router-radius-rs1] key authentication simple radius
[Router-radius-rs1] key accounting simple radius
# Configure the access device to not carry the ISP domain name in the username sent to the
RADIUS server.
[Router-radius-rs1] user-name-format without-domain
[Router-radius-rs1] quit
2. Configure an authentication domain:
# Create ISP domain dm1 and enter its view.
[Router] domain dm1
# Configure AAA methods for the ISP domain.
[Router-isp-dm1] authentication portal radius-scheme rs1
[Router-isp-dm1] authorization portal radius-scheme rs1
[Router-isp-dm1] accounting portal radius-scheme rs1
[Router-isp-dm1] quit
