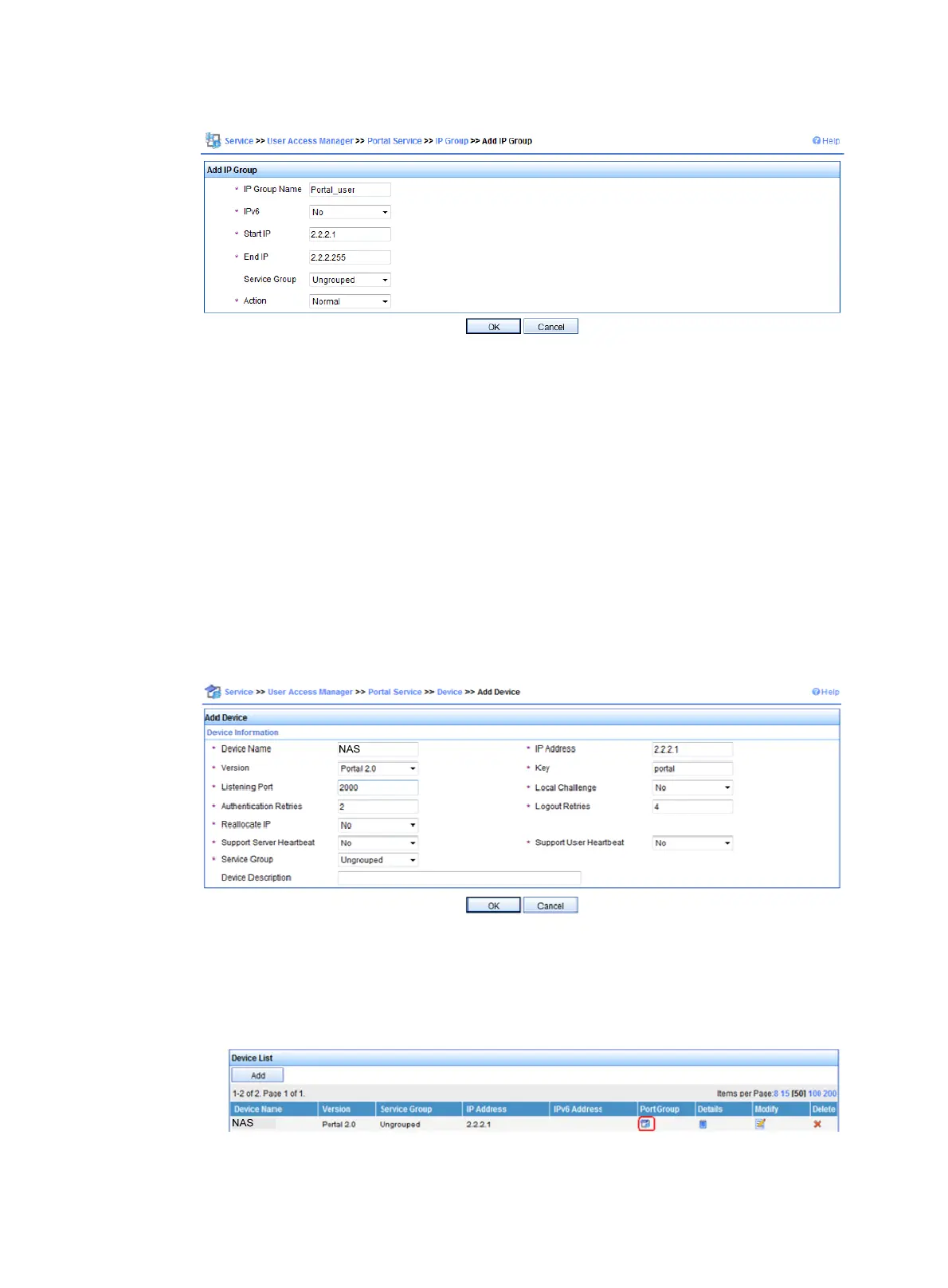

Figure 107 Adding an IP address group
3. Add a portal device:
a. Select User Access Manager > Portal Service Management > Device from the
navigation tree to enter the portal device configuration page.
b. Click Add to enter the page shown in Figure 108.
c. Enter the dev
ice name NAS.
d. Enter the IP address of the router's interface connected to the user.
e. Enter the key, which must be the same as that configured on the switch.
f. Set whether to enable IP address reallocation.
This example uses direct portal authentication, and therefore select No from the Reallocate
IP list.
g. Select Yes for both Support Server Heartbeat and Support User Heartbeat.
h. Click OK.
Figure 108 Adding a portal device
4. Associate the portal device with the IP address group:
a. As shown in Figure 109, cli
ck the icon in the Port Group Information Management column
of device NAS to enter the port group configuration page.
Figure 109 Device list
b. On the port group configuration page, click Add to enter the page shown in Figure 110.
