Configuring the RADIUS server on IMC PLAT 3.20
In this section, the RADIUS server runs on IMC PLAT 3.20-R2606 and IMC UAM 3.60-E6206.
1. Add the router to the IMC Platform as an access device:
a. Click the Service tab.
b. From the navigation tree, select Access Service > Access Device.
c. Click Add to configure an access device as follows:
− Set the shared key for secure authentication and accounting communication to expert.
− Set the ports for authentication and accounting to 1812 and 1813, respectively.
− Select the service type Device Management Service.
− Select the access device type HP.
− Select the access device from the device list or manually add the access device (with
the IP address 10.1.1.2).
d. Click OK.
The IP address of the access device specified here must be the same as the source IP address
of the RADIUS packets sent from the device, which is chosen in the following order:
{ IP address specified with the nas-ip command on the device.
{ IP address specified with the radius nas-ip command on the device.
{ IP address of the outbound interface (the default).

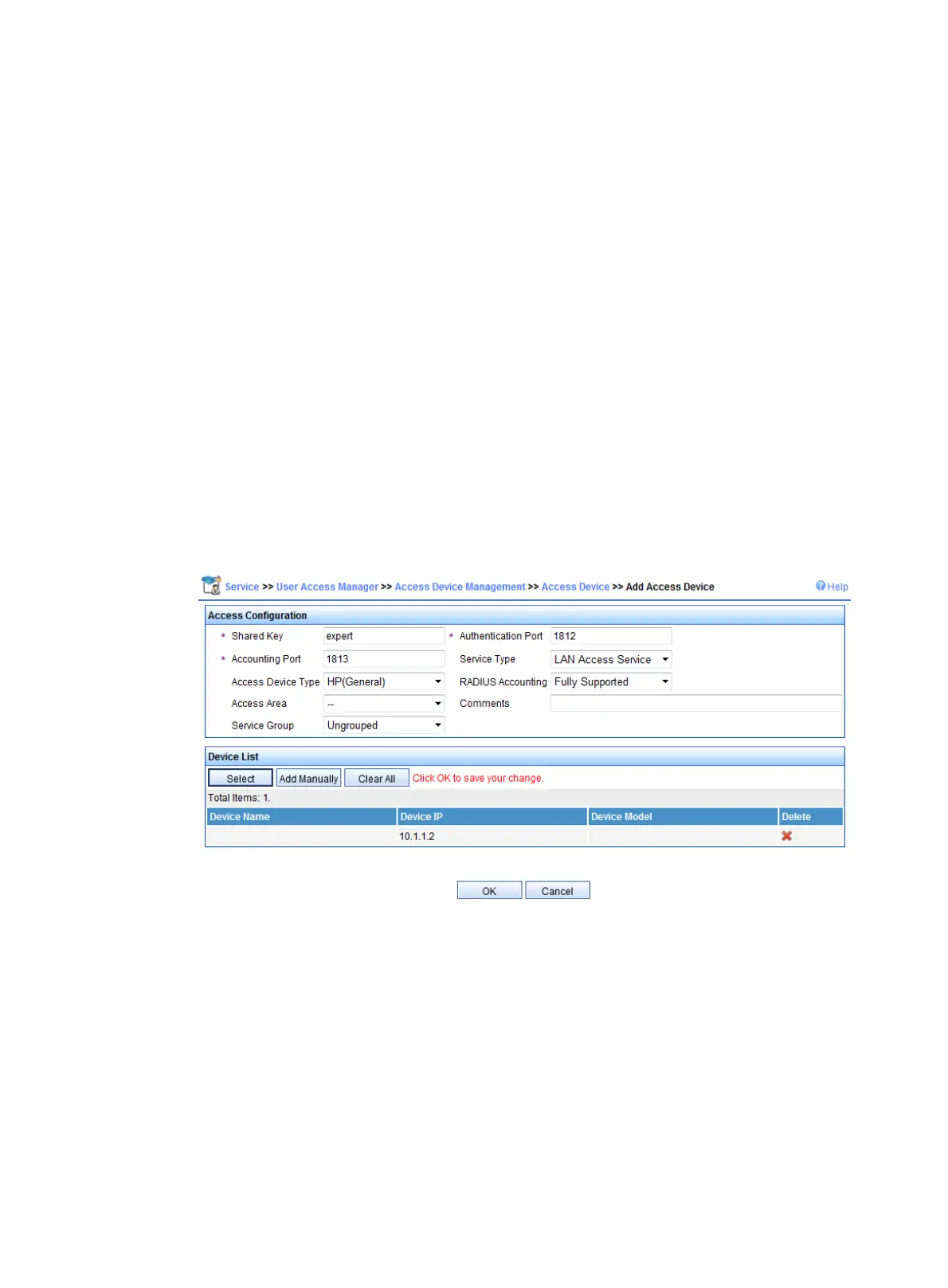

Figure 14 Adding the router as an access device
2. Add a user account for device management:
a. Click the User tab.
b. From the navigation tree, select Access User View > Device Mgmt User.
c. Click Add to configure a device management account as follows:
− Enter the username hello@bbb and specify the password.
− Select the service type Telnet.
− Set the EXEC privilege level to 3. This argument identifies the privilege level of the
Telnet user after login and defaults to 0.
− Specify 10.1.1.0 to 10.1.1.255 as the IP address range of the hosts to be managed. The
IP address range must contain the IP address of the access device.
d. Click OK.
