46 EDGE Pro Ti CNC Instruction Manual 807660

Installation

Mounting the THC

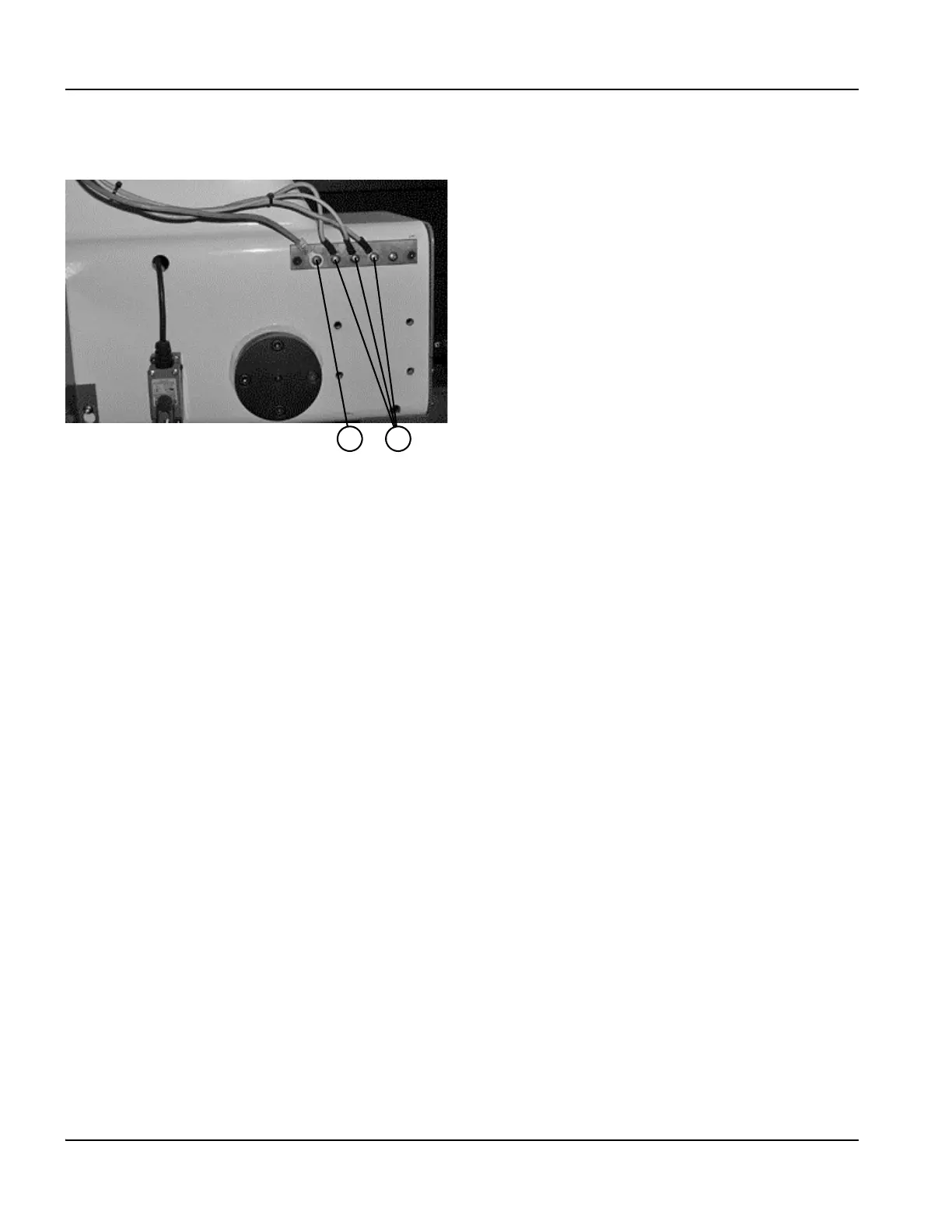

The following picture shows an example of a gantry ground bus. It is bolted to the gantry, close to the motor. All of the

individual ground cables from the components mounted on the gantry connect to the bus. A single heavy cable then

connects the gantry ground bus to the table ground bus.

1 Cable to the cutting table ground bus

2 Ground cables from components on the

gantry

1 2
