72

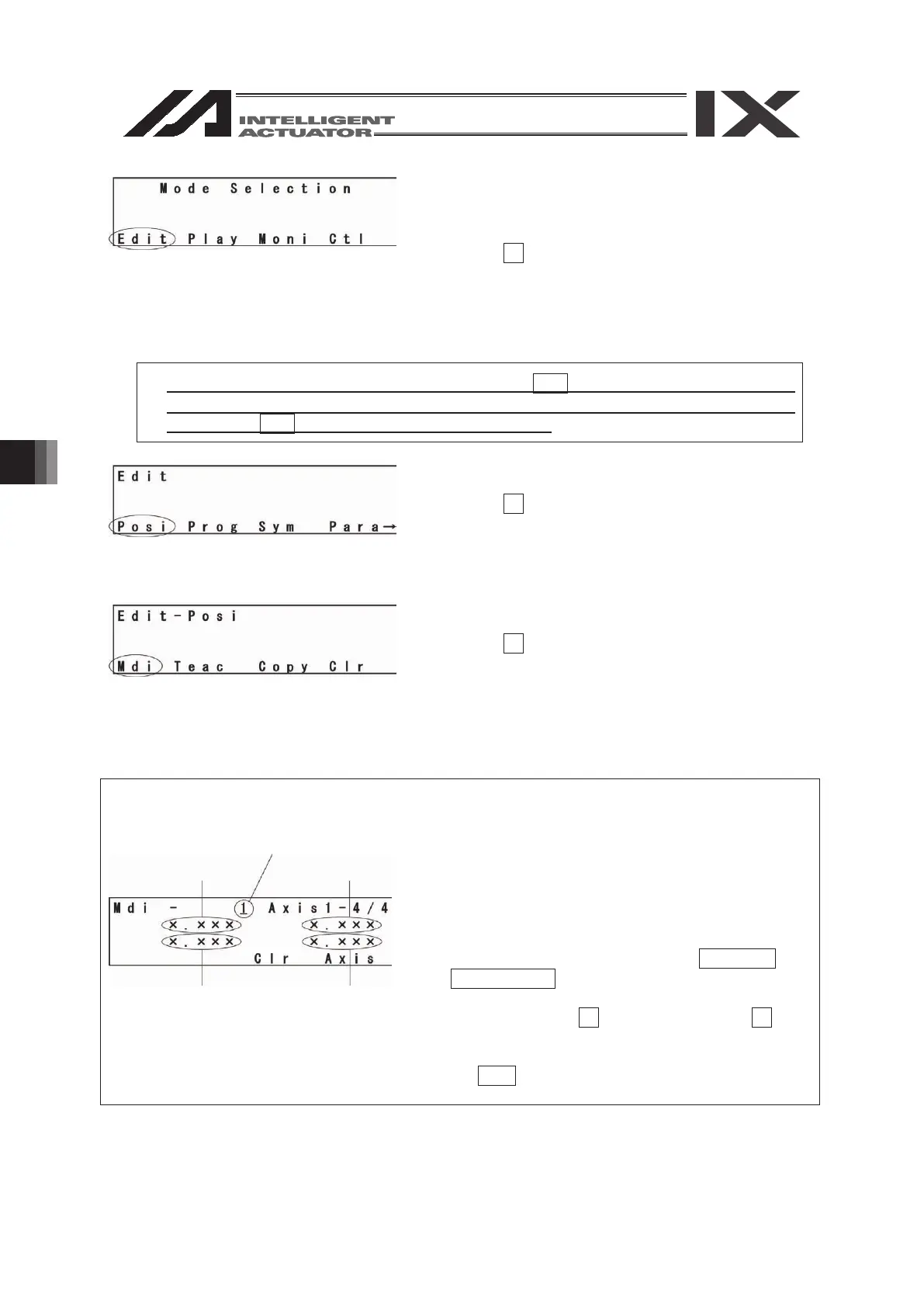

Mode Selection screen
This screen becomes the basic screen for all
operations.
Press the F1 (Edit) key.
* If you make a wrong selection or input, press the
ESC key and return to the previous
screen. Then, you can continue operation. You can return to the basic screen by
pressing the ESC key several times from any screen.
Edit mode screen
Press the F1 (Posi) key.
Edit-Posi (position data edit) screen
Press the F1 (Mdi) key.
Position No. input mode
The cursor is located at the position No.
When no data is input, X.XXX is displayed. Press
the return key to move the cursor to the section of
the position data for the X-axis.
* When data is already input, overwrite it (the
original data is lost) or use the PAGE UP and
PAGE DOWN keys to move to the screen with
X.XXX displayed and input data.
If you press the F3 (Clr) key and then F1 (Clr)
key, all axis input data will be cleared. You can
clear the controller data with the (Clr) key even if
the WRT key is not pressed.
X-axis data Y-axis data
Position No.
Z-axis data R-axis data
To Next Page
