160

11. Program Edit

(Excluding the positioner mode of the SSEL, ASEL and PSEL controller.)

160

145

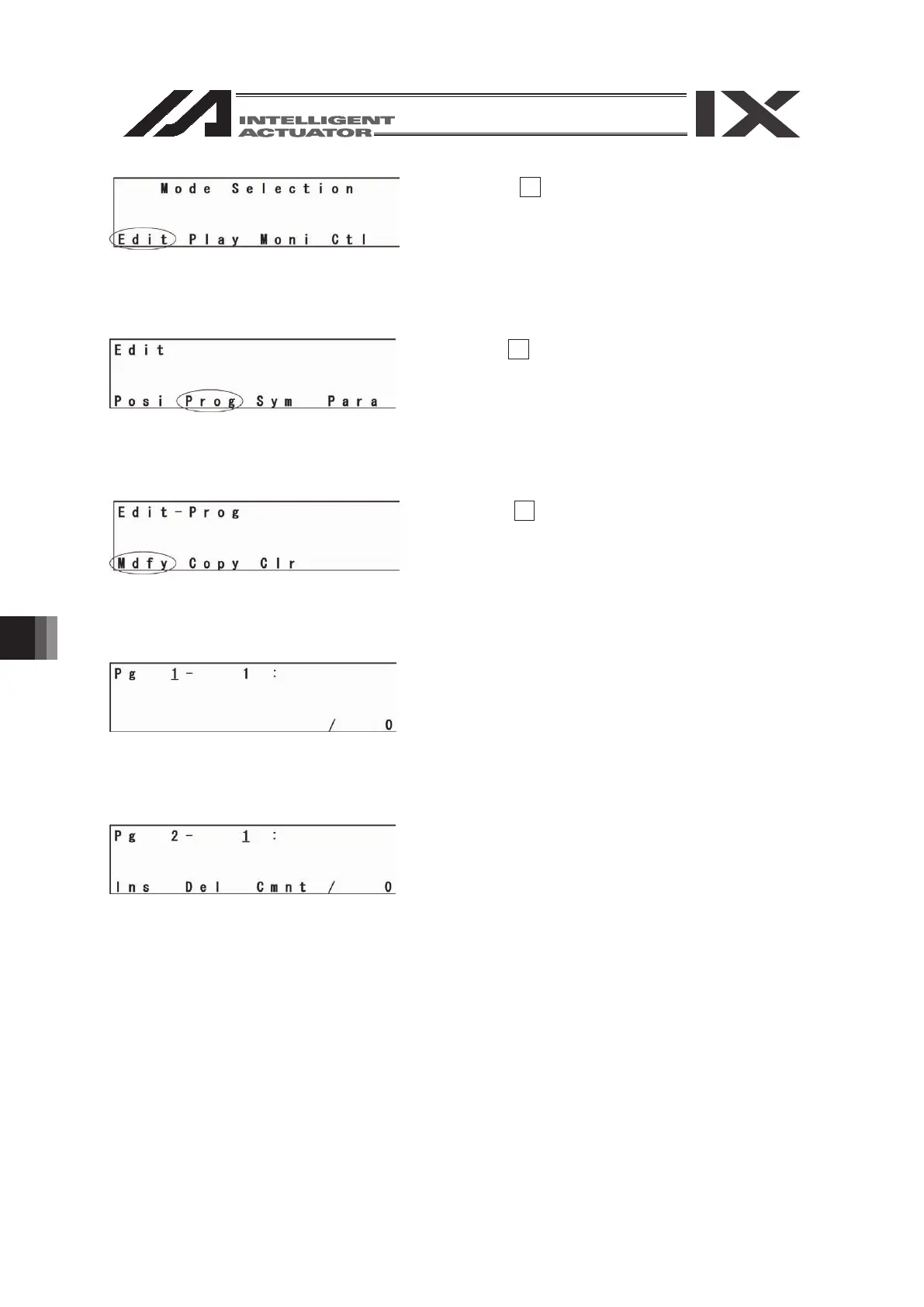

Select the F1 (Edit) key on the mode selection

screen.

Select the F2 (Prog) key on the edit mode screen.

Select the F1 (Mdfy) key on the program edit and

new creation screen.

Input the program No. by using the 10 keys and

press the return key.

The cursor moves to step No.

Press the return key.
