15. Monitor
213
198
(4) Mount SIO (Controller P/Q and PX/QX type only)

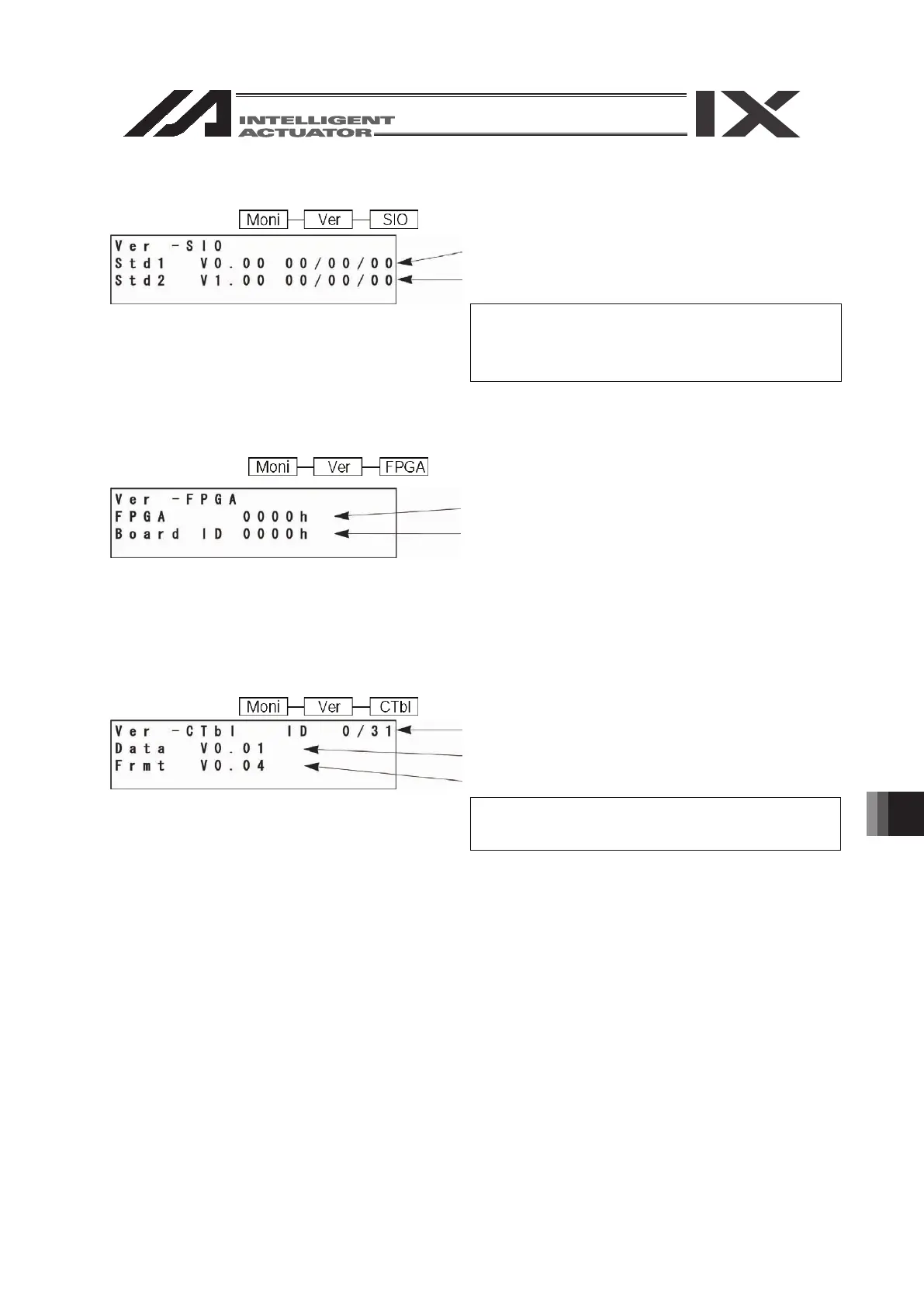

Mode Transition:
Channel 1 Version
Channel 2 Version
* “Nonuse” is displayed for the channel with
the I/O parameters No. 201 and No. 213 set
to “Nonuse.”
(5) FPGA (Controller P/Q, PX/QX, SSEL, ASEL and PSEL type only)
Mode Transition:
FPGA Version (HEX)
Board ID (HEX)
(6) Control Constant Table Management Information (Controller P/Q, PX/QX, SSEL, ASEL
and PSEL type only)
Mode Transition:
Currently Displayed Table ID/Largest Table ID
Data Version
Format Version
* Change the table ID to display with the
PAGE UP · PAGE DOWN keys.
(5) FPGA (Controller P/Q, PX/QX, R/S, RX/SX, RXD/SXD, SSEL, ASEL, and PSEL, TTA
type only)
(6) Control Constant Table Management Infomation (Controller P/Q, PX/QX, R/S, RX/SX,
RXD/SXD, SSEL, ASEL, and PSEL type only)
(4) Mount SIO (Controller P/Q, and PX/QX, R/S, RX/SX, RXD/SXD type only)
