16. Controller

239

219

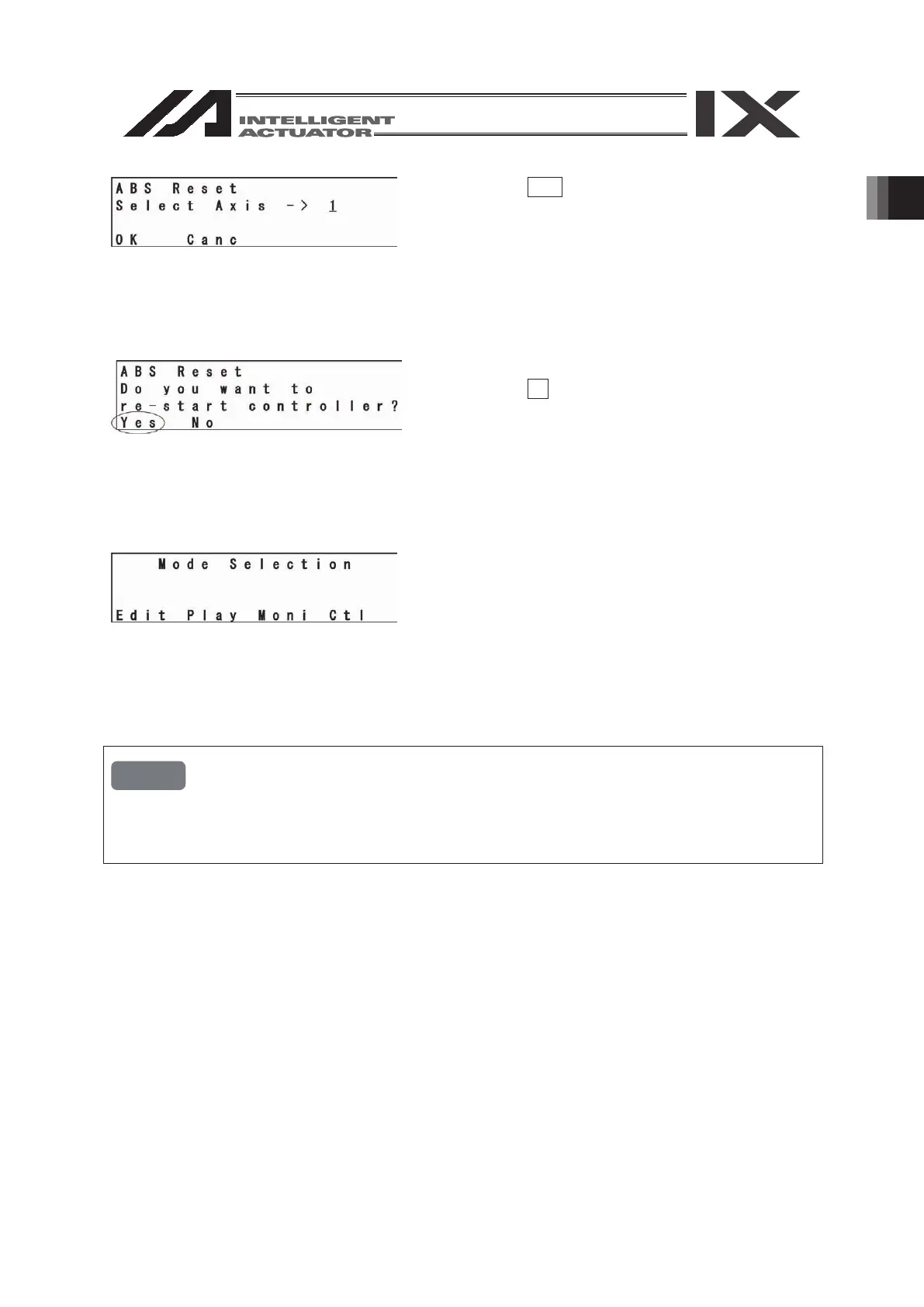

Press the ESC key.

Restart the controller.

Press the F1 (Yes) key.

The screen returns to the Mode Selection screen.

Be careful not to perform reset using an incorrect sequence, since it may cause the

arm position to become offset.

Execute “home preset value auto refresh” only when any mechanical change such as

arm change has been made. (Joint part only)

NOTE:
