16. Controller

247

227

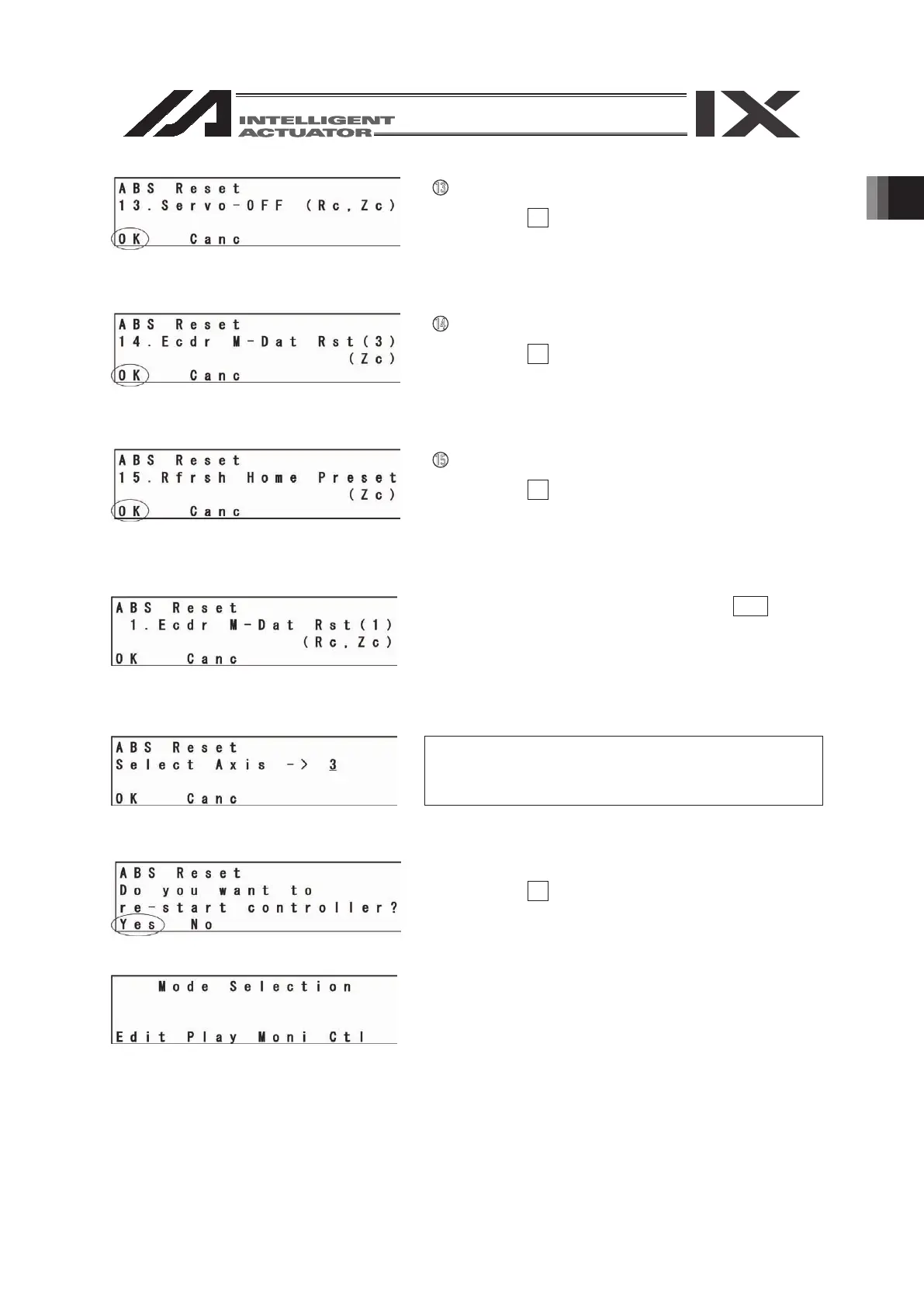

⑬

Servo OFF

Press the F1 (OK) key.

⑭ Encoder multi-rotation data reset (3)

Press the F1 (OK) key.

⑮

Home preset value auto refresh

Press the F1 (OK) key.

Return to the previous screen with the ESC key.

Note: If “Write Flash ROM?” is displayed, exit the

screen with “No.”

Restart the controller.

Press the F1 (Yes) key.

Writing Flash ROM
