IAI SEL User Manual

282
17. Gateway Function Associated
282

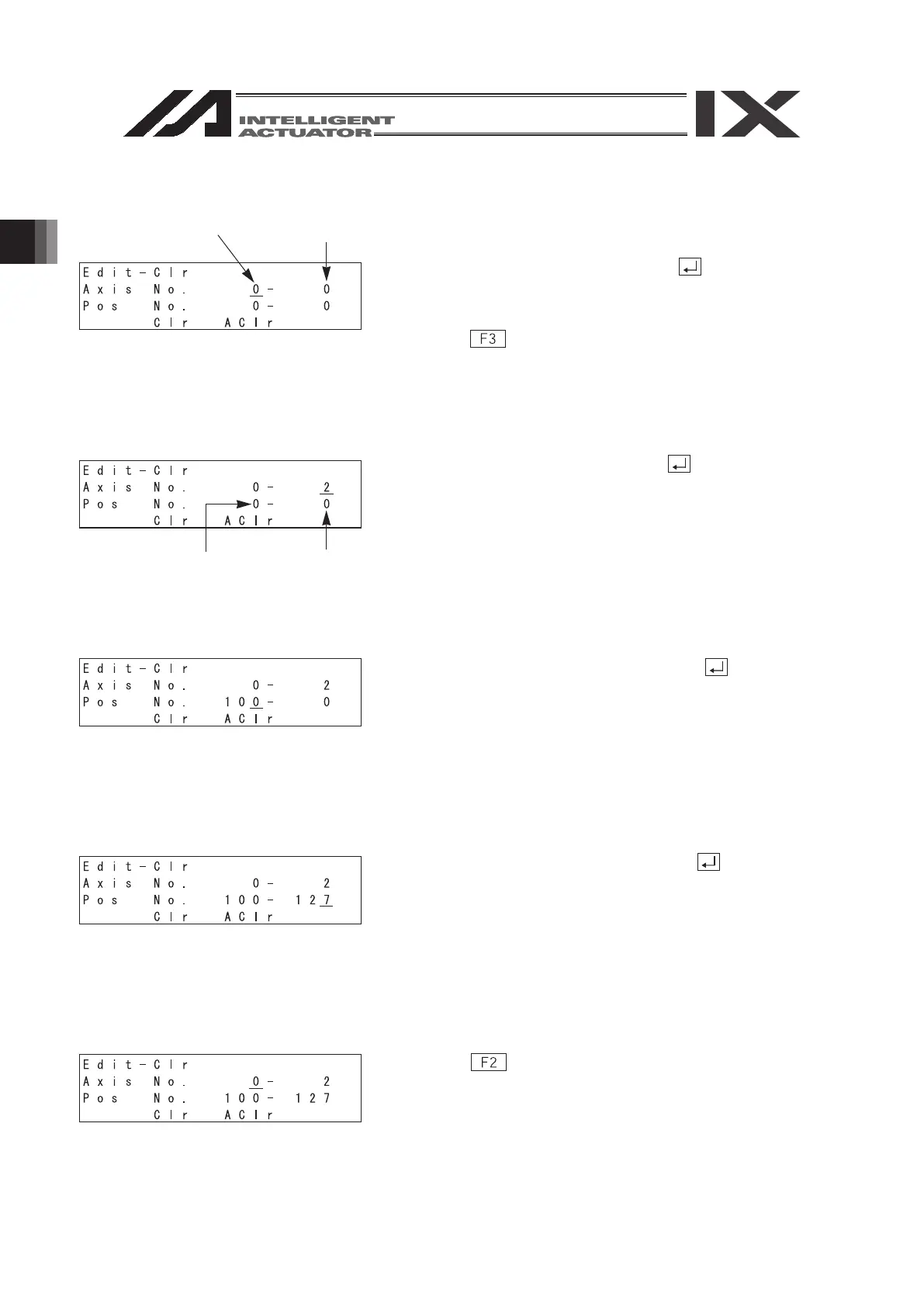

Head Axis No.
for the Position
Data to be deleted
Last Axis No. for
the Position Data
to be deleted
Input the Head Axis No. and press the key.
When all the position data items are to be deleted:
press the (AClr) key.
Input the Last Axis No. and press the key.
Head Position No.
for the Position
Data to be deleted
Last Position No.
for the Position
Data to be deleted
Input the Head Position No. and press the key.
Input the Last Position No. and press the key.
Press the (Clr) key.
The execution confirmation screen is displayed.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
