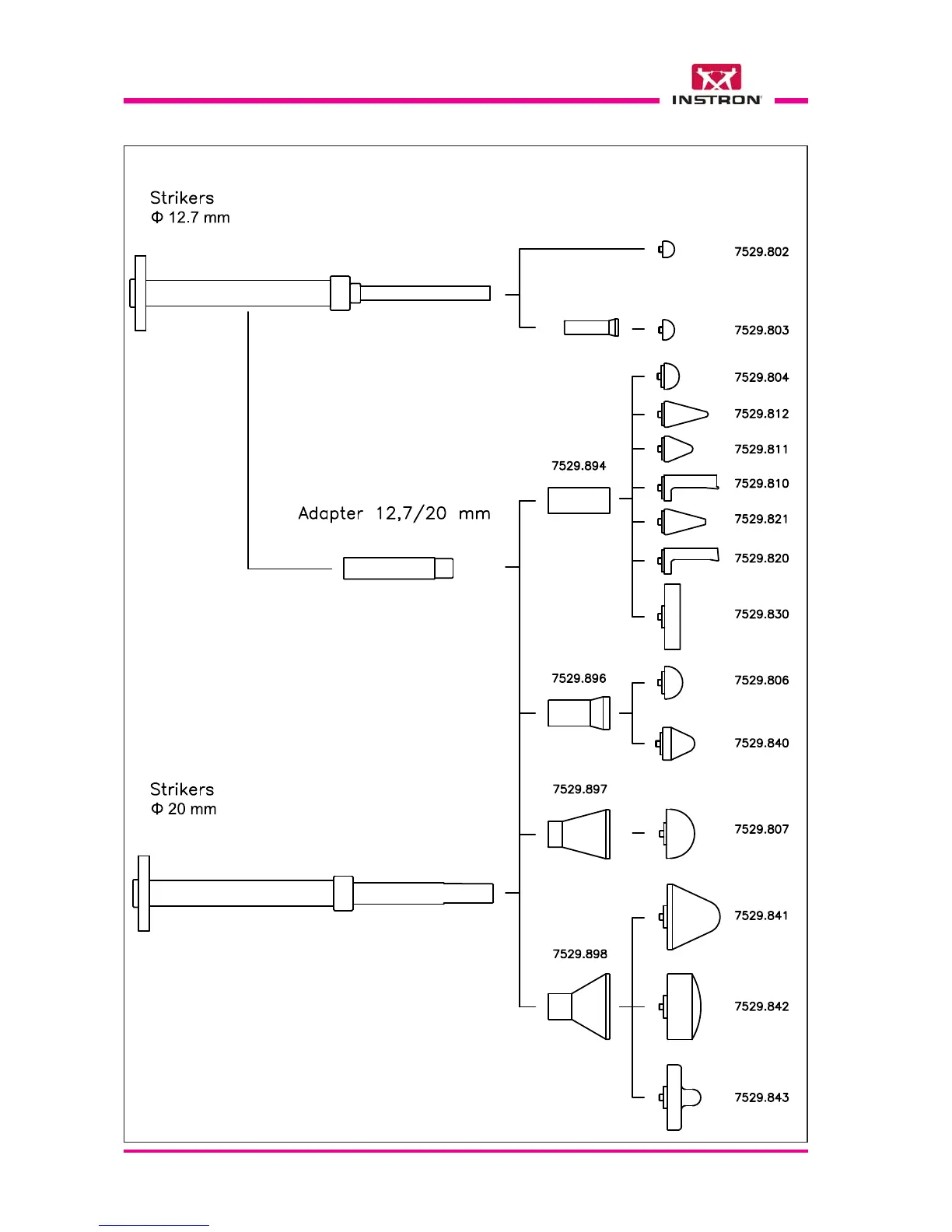

ASSEMBLY FLOW CHART FOR INTERCHANGEABLE HEAD STRIKERS
7529.801(a)(b)
(c)
(a): for striker 7519.694 only;
(b): one head 12.7 mm, code 7529.801 included;
(c): one head 12.7 mm, code 7529.802 included.
7519.001 not instrumented
7519.504 5 kN strain-gauge
7519.505 10 kN strain-gauge
7519.694 4.5 kN piezo
7519.696 22 kN piezo
7519.506 20 kN strain-gauge
7519.507 40 kN strain-gauge
7519.606 22 kN piezo
