CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 71

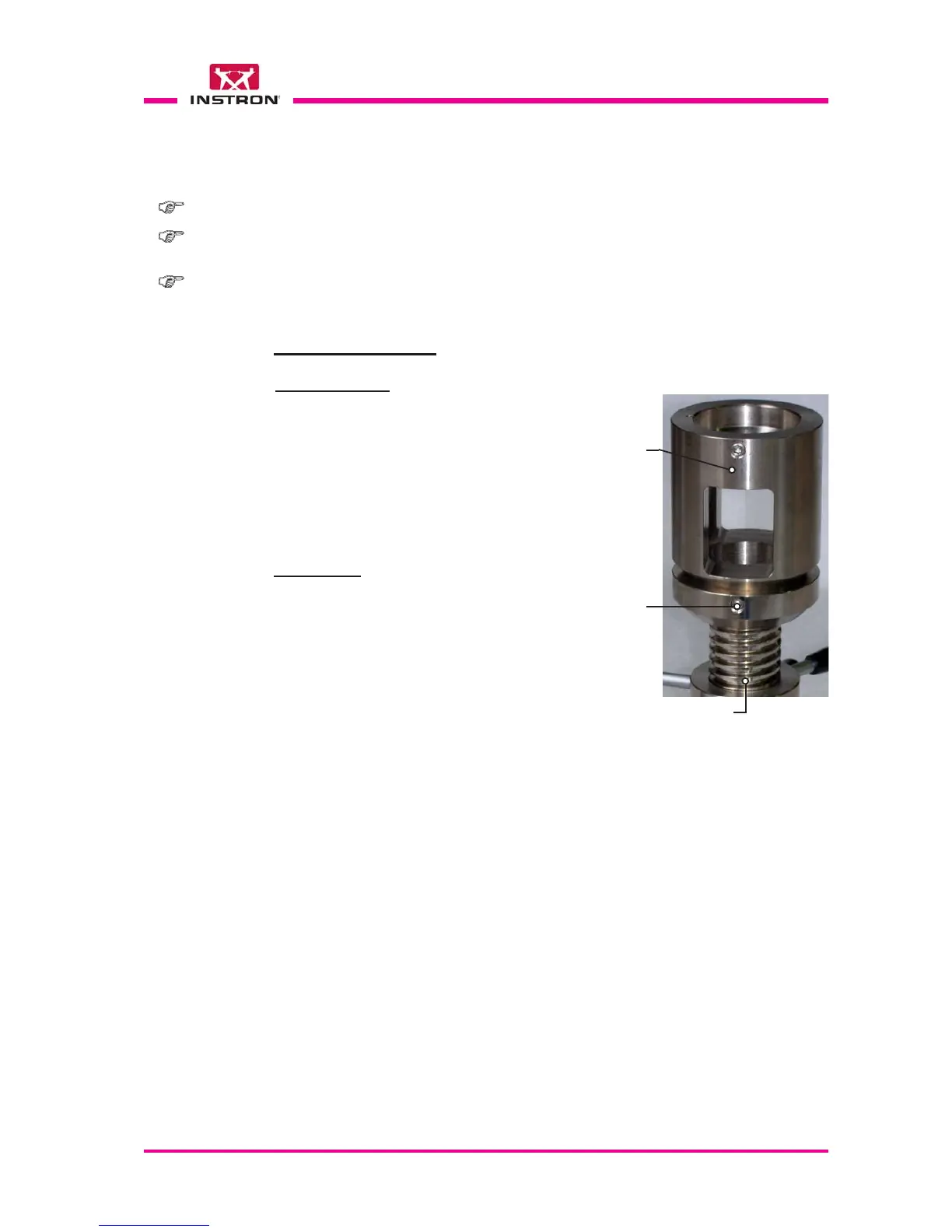

8.6.2.2 SPECIMEN FIXTURES FOR ADJUSTABLE HEIGHT STAND
Note: for the specimen fixtures list refer to the Appendix A at the end of this document.
Note: before to install any specimen fixtures on the adjustable height stand make sure
that the fixtures adapter is already installed on it.
X
DISASSEMBLY
8.6.2.2.1
FIXTURES ADAPTER
ASSEMBLY
X
X
Fixtures
adapter
Adjustable
height stand
a) Open the door of the chamber.
b) Loosen the screw.
c) Lift and remove the fixture adapter
from the adjustable height stand.
a) Open the door of the chamber.
b) Place the fixtures adapter on top of
the adjustable height stand and en-
gage the pin in the underlying hole.
c) Tighten the screw.
X
X
X
Note: before to install the “thousand holes plate” remove the fixtures adapter from the
adjustable height stand.
Screw
