CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 85
d) Izod head
1) Insert and screw the spacer to the striker body (Fig. 9) by hand. Skip this step if
it is already installed.
2) Screw and tighten the Izod head to the striker body by hand.
3) Loosen and unscrew the ring nut until the spacer is very near to the Izod head
(not in contact).
4) Place the template against the Izod head as shown in the Fig. 10. Turn the edge
of the Izod head until it is in contact with the flat surface of the template (marked
Izod).
5) Hold the Izod head in position and tighten the ring nut.

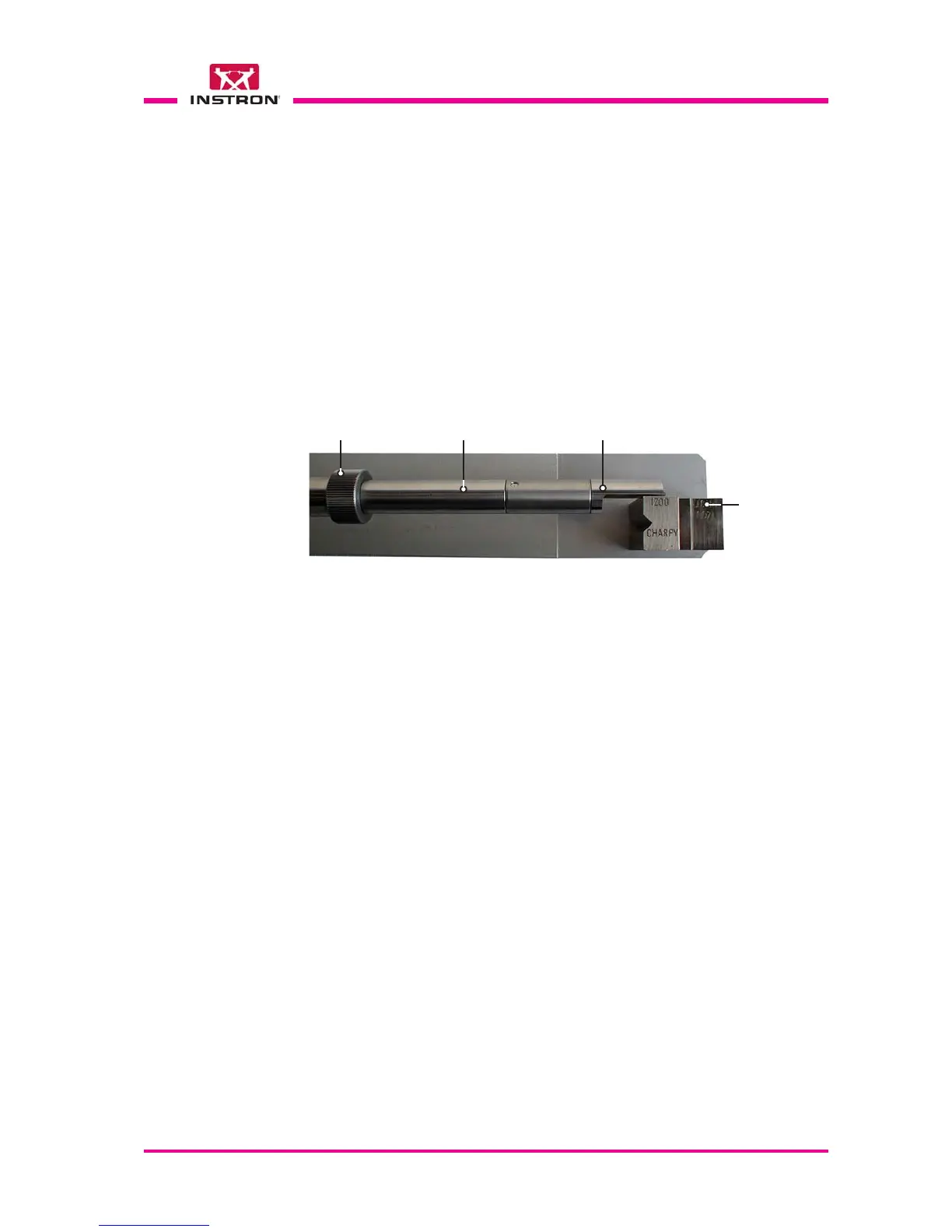

Fig. 9 - Striker with the Izod head aligned
Ring nut
Heads
alignment
template
Spacer
Izod head
X
