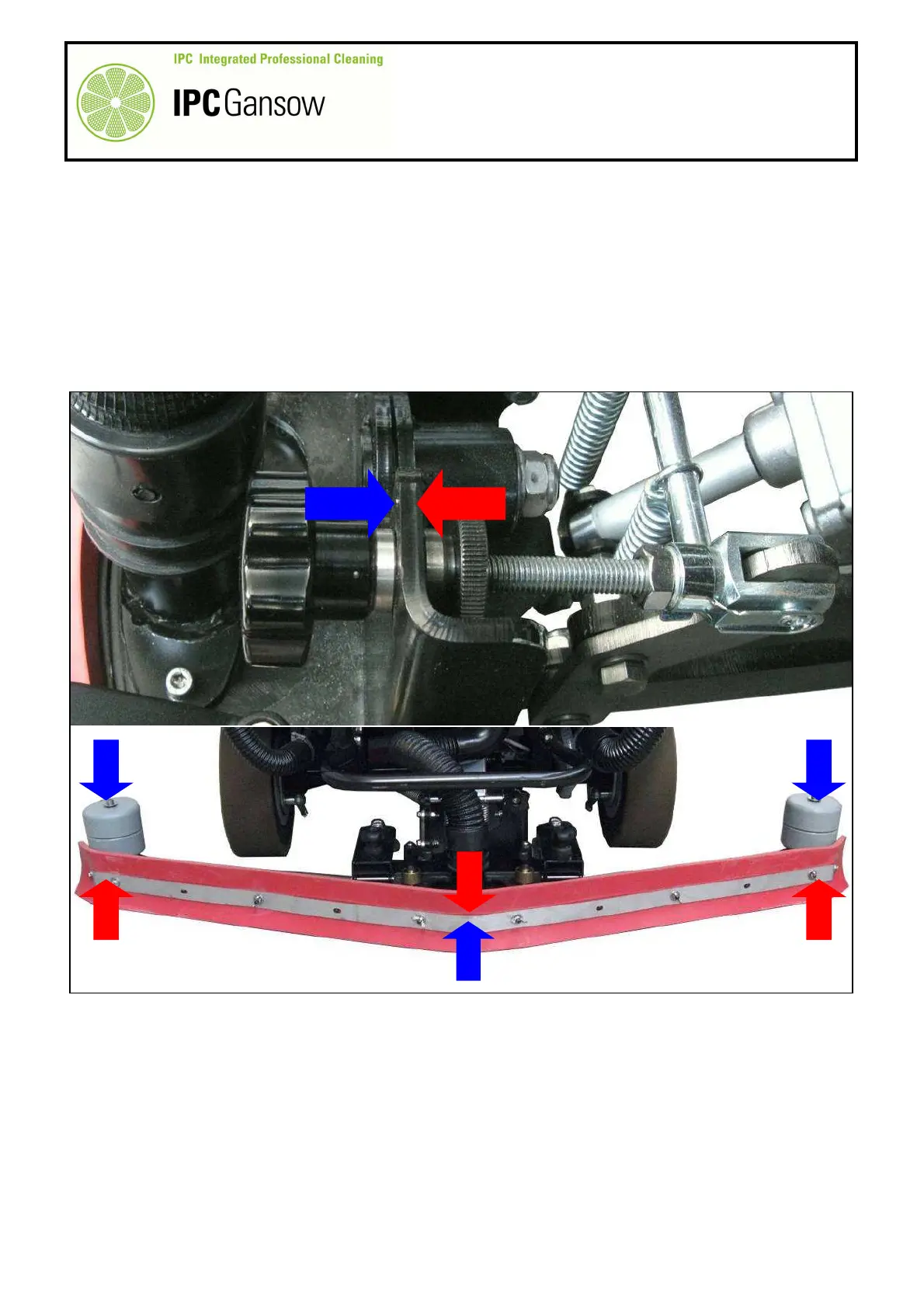

If the blade does not press evenly on the floor, in other words, the centre part of the squeegee is higher or
lower than the ends, adjust the angle of the squeegee by means of the metal knobs B and C.
10
Regulate by unscrewing the knurled knob C and screwing up the knob B to lower the ends and raise the
centre of the squeegee.
11
Vice versa, unscrewing the knob B and screwing up the knurled knob C lowers the centre of the squeegee
and raises the ends.
12
Perform a drying phase. When correctly regulated, block in place by screwing up the two knobs B and C
together.
PHOTO 230
B C
