PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
177/195
D1.1 Connecting the chem-dose switch on the control panel
(optional)
Assembly
The CT 230 control panel is designed to take the optional chem-dose device.
1
Move the machine onto a flat dry area of floor.
2
Brake the machine by pressing the pedal to put the parking brake on.
3
Remove the control panel from the front panel of the machine.
4
Remove the plastic cap covering the hole provided for the chem-dose switch.
5
Mount the chem-dose switch with the gold coloured fastin towards the bottom of the control panel board.
6
Connect the red wire with the in series resistor to the gold coloured fastin indicated in the photograph.
7
Connect the yellow wire coming from the dashboard to the central fastin. This yellow wire comand the signal
through +24 V coming the red wire to the dashboard.
8
Connect the black wire to the remaining free fastin.
Reassembly
1
Remount the control panel, performing the disassembly operations in reverse.

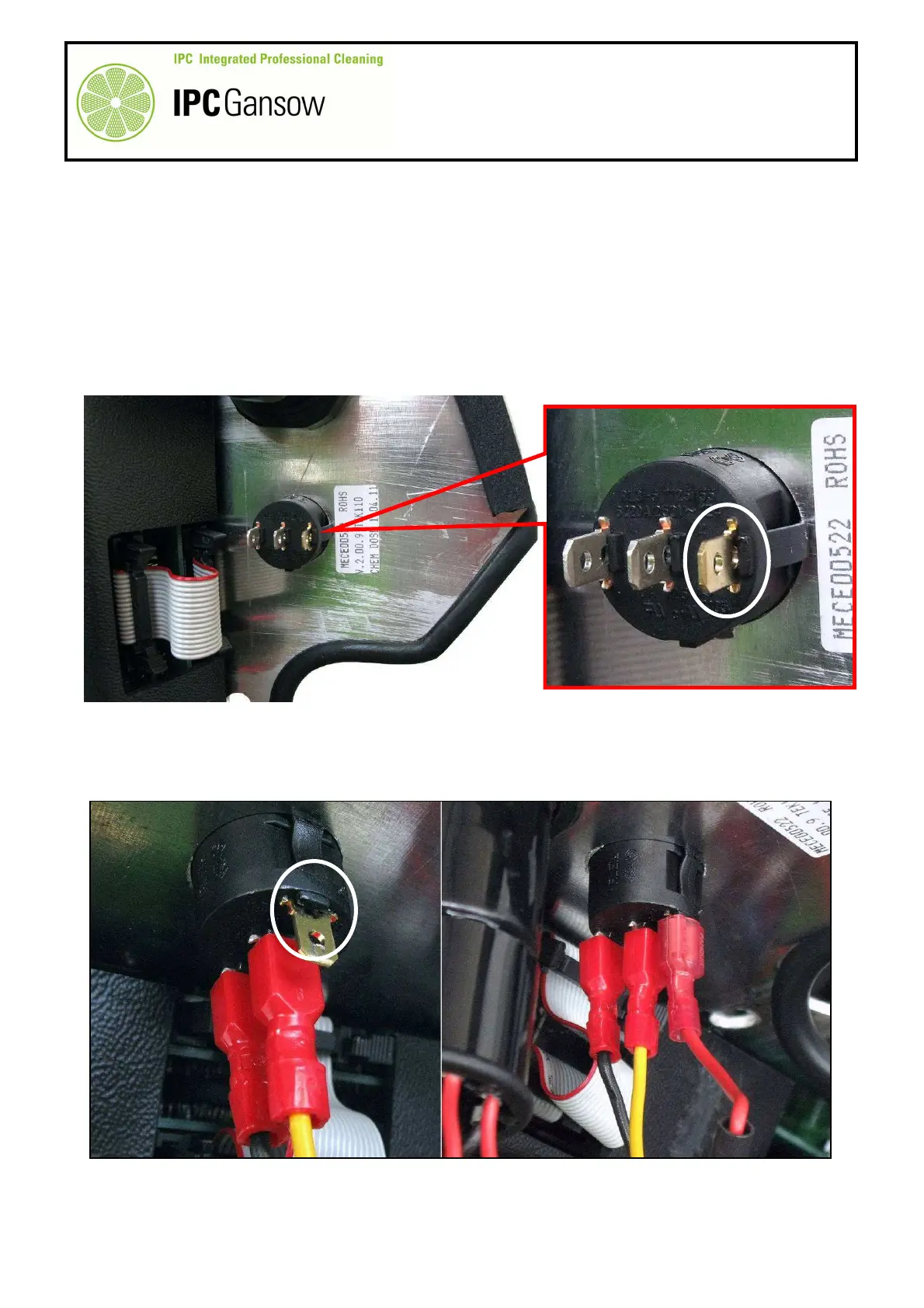

PHOTO 365
PHOTO 366
