IPCGansow CT 230 BT 85 - Checking and Replacing the Brush Motor Carbon Brushes; Disassembly

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 13/195

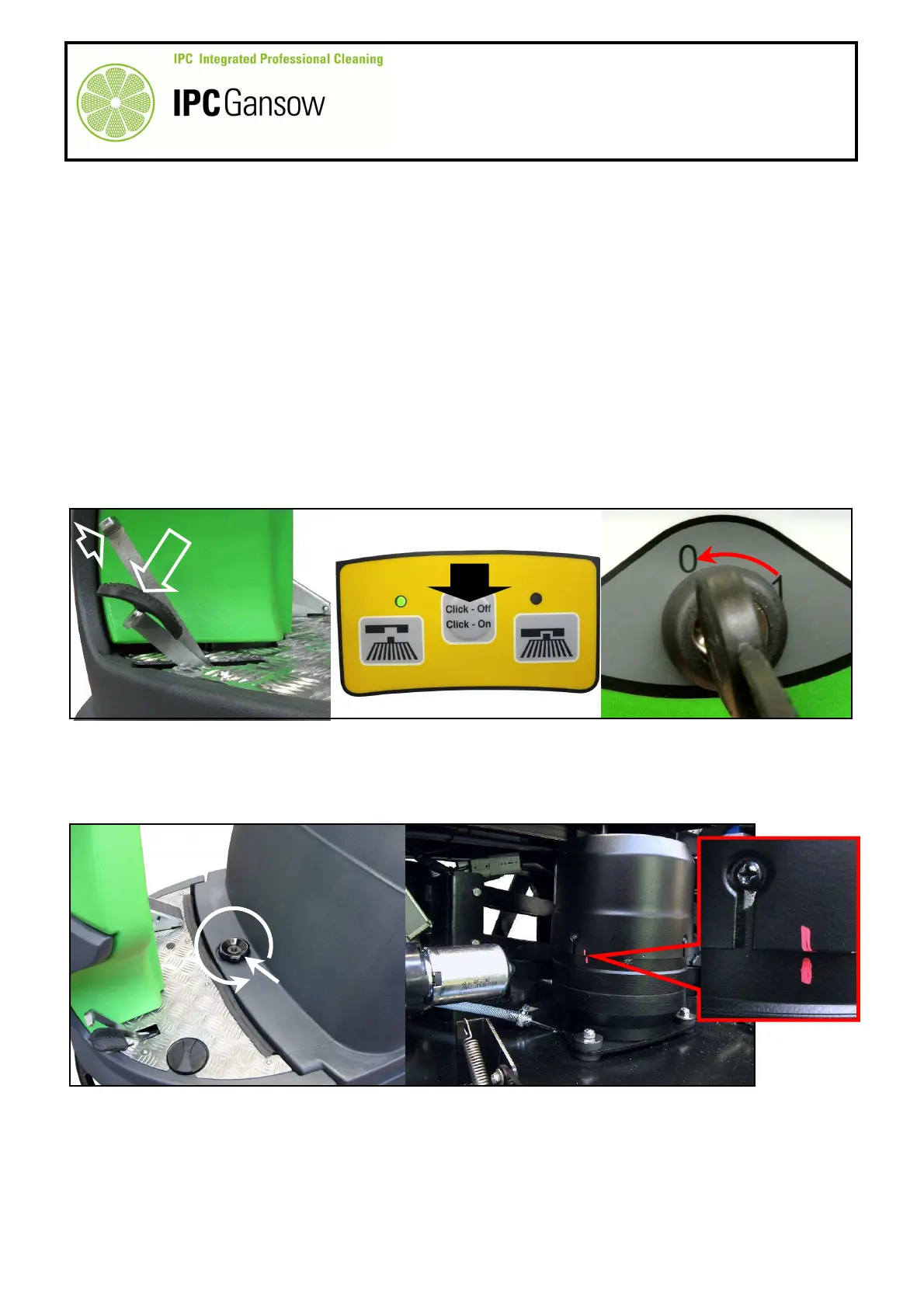

A1.3 Checking and replacing the brush motor carbon brushes
The procedure to replace the brush motor carbon brushes is similar for the two motors
(BT 85 - BT 105), except that in the BT 105 version the air conveyor must be removed.
The procedure for accessing the carbon brushes on the BT 105 version is described below.
Disassembly
1 Move the machine to the tank draining area and empty the detergent and dirty water tanks.
2 Move the machine to a flat dry surface. The operation can be simplified by using an autolift if available.
3 Press the pedal A to put the parking brake on.
4 Press the button B to release the brushes.
5 Turn the ignition key to position "0".
6 Remove the brushes from under the head.
7 Unscrew the knob C by turning it anticlockwise to release the tanks. Raise the tanks.
8 Mark the position of the air conveyor D1 on the motor D with a felt pen.
A
PHOTO 29
B
PHOTO 30
D
D1
D1
D
C
i
